Removal [12/2017 - 10/2020]: Procedure

Refer to PROCEDURE - Step 11 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 11 [09/2018 - 10/2020]

Refer to PROCEDURE - Step 9 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 9 [09/2018 - 10/2020]

Refer to PROCEDURE - Step 8 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 8 [09/2018 - 10/2020]

Refer to PROCEDURE - Step 10 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 10 [09/2018 - 10/2020]

Refer to REMOVAL [12/2017 - ]

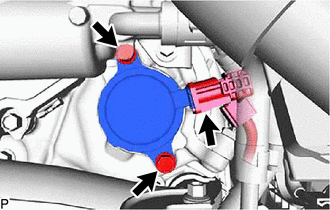

1. Disconnect the cam timing oil control solenoid assembly LH connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 2 bolts and cam timing oil control solenoid assembly LH from the No. 2 timing gear cover assembly.
   NOTE:

   If the cam timing oil control solenoid assembly LH has been struck or dropped, replace it.

3. Remove the O-ring from the cam timing oil control solenoid assembly LH.
   NOTE:

   • When removing the O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly LH.
   • If the O-ring groove of the cam timing oil control solenoid assembly LH is damaged, replace the cam timing oil control solenoid assembly LH with a new one.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Perform this procedure only when replacement of the O-ring is necessary.
