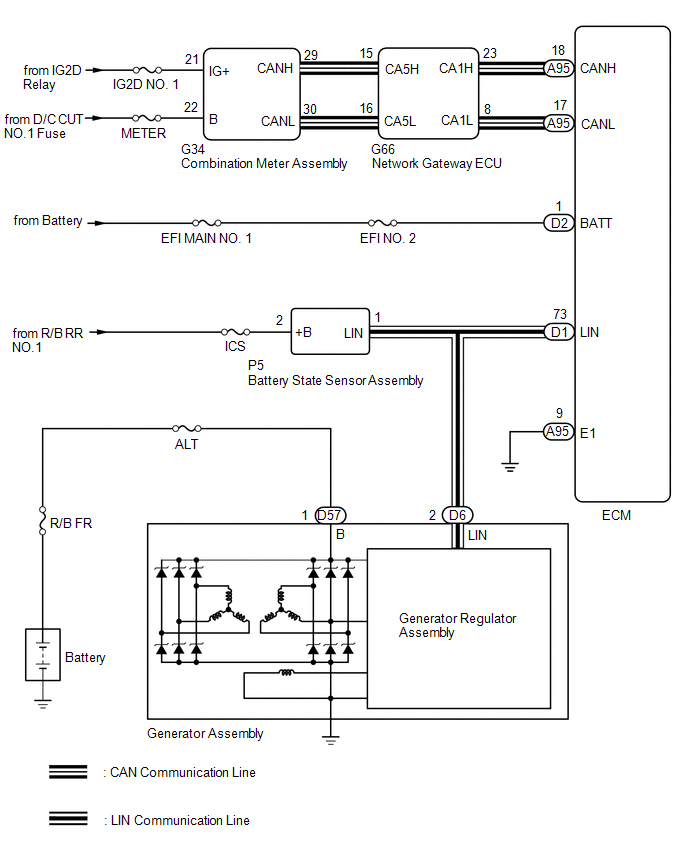

Home >> Lexus >> 2021 >> LS 500 Base, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Charging Systems >> Battery / Charging System - Diagnostics - Introduction >> Charging System >> System Diagram [12/2017 - ] >> System Diagram [12/2017 - ]
