SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)
>>
Power Source Mode does not Change to ON (IG) [12/2017 - 10/2023]
>>

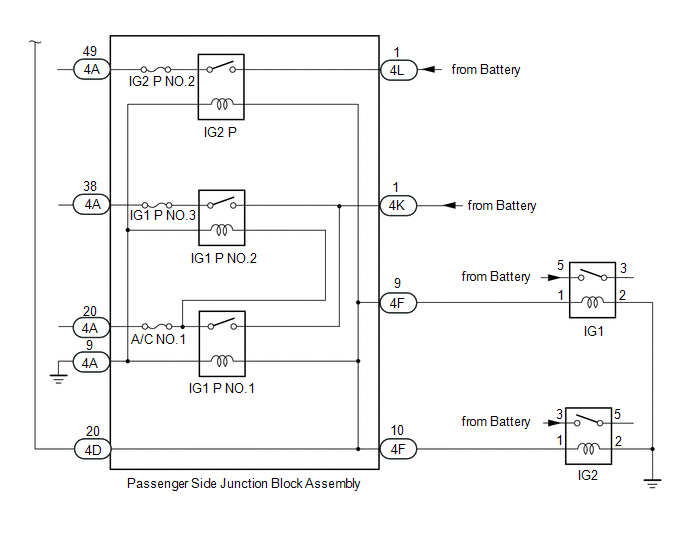

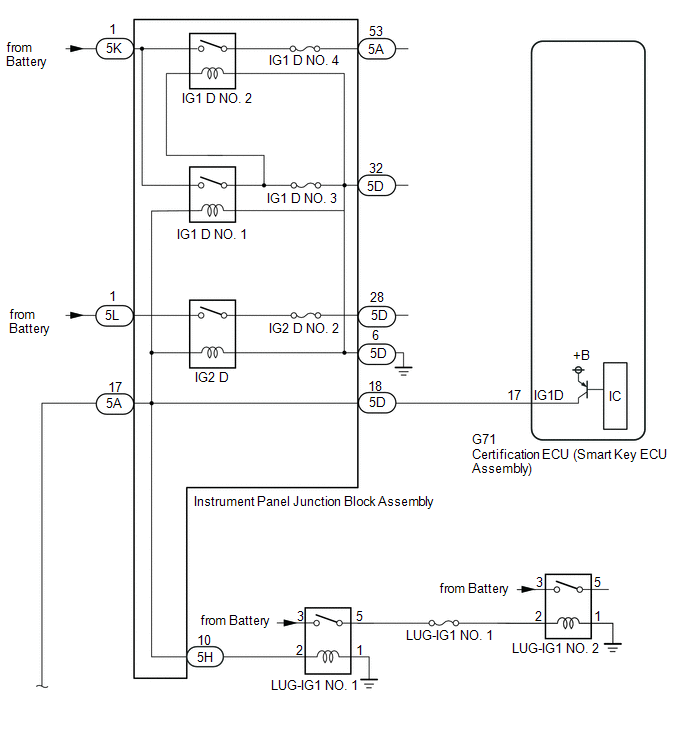

Wiring Diagram
Power Source Mode does not Change to ON (IG) [12/2017 - 10/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
