Installation [12/2017 - ]: Procedure

  1. INSTALL LEVEL WARNING SWITCH ASSEMBLY
    1. Install a new packing to the level warning switch assembly.

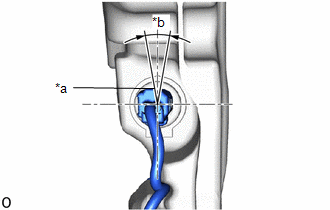

    2. Install the level warning switch assembly so that the protrusion is at the position shown in the illustration.
      GTY836828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion
      *b 20°
    3. Connect the connector.
  2. INSTALL WASHER HOSE PROTECTOR

    See step  2[12/2017 - 10/2020], or see step  2[10/2020 - ]

  3. INSTALL WINDSHIELD WASHER JAR ASSEMBLY

    See step  3[12/2017 - 10/2020], or see step  3[10/2020 - ]
