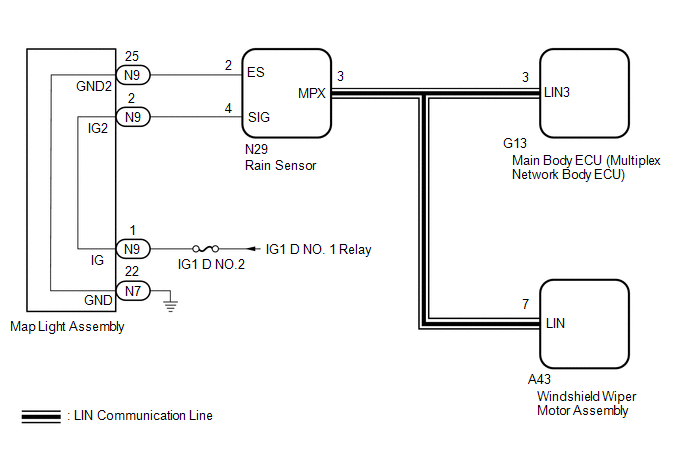

DTC B1279: Lost Communication with Humidity/Rain Sensor LIN [12/2017 - 10/2023]: Wiring Diagram

GTY1235139

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
