Installation [12/2017 - ]: Procedure

  1. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY LH

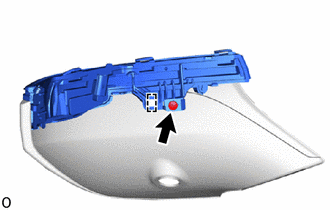

    1. Attach the guide to set the side turn signal light assembly LH.
      GTY780417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
  2. INSTALL NO. 2 OUTER MIRROR COVER LH

    Refer to PROCEDURE - Step 4 [12/2017 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 5 [10/2023 - ]

  3. INSTALL OUTER MIRROR LH

    Refer to PROCEDURE - Step 1
