Installation [12/2017 - ]: Procedure

  1. INSTALL LICENSE PLATE LIGHT ASSEMBLY

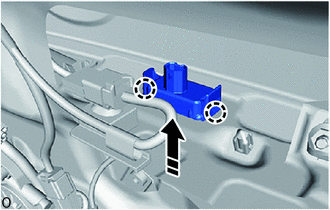

    1. Attach the claw to install the license plate light assembly.
      GTY780618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

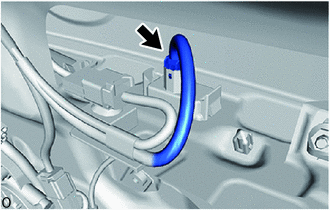

    2. Connect the connector.
      GTY811672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to INSTALLATION [12/2017 - ]
