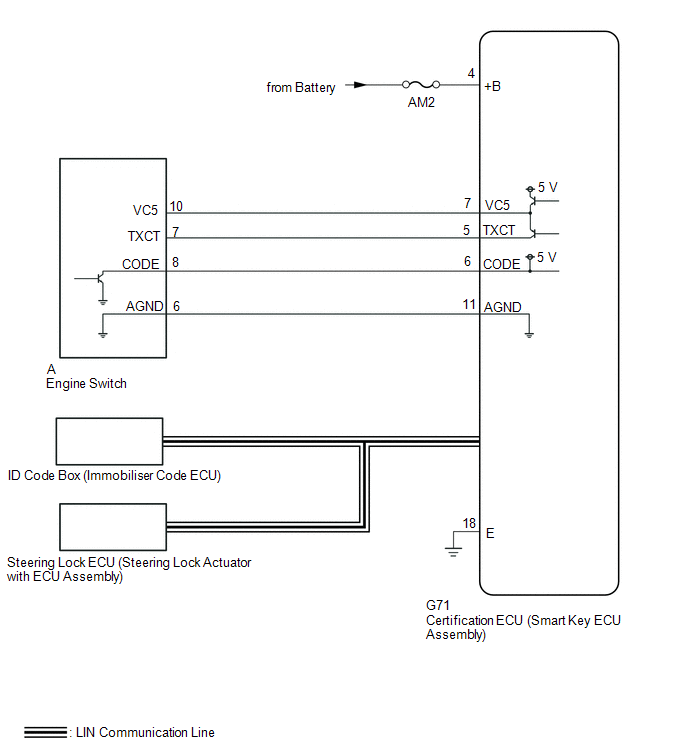

New Key cannot be Registered [12/2017 - 10/2022]: Wiring Diagram

GTY1133347

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
