Additional Key cannot be Registered [12/2017 - 10/2022]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Access / Trouble Codes.
5. Check for DTCs.

   Body Electrical > Smart Access > Trouble Codes

   NOTE:

   If a malfunction occurs, do not remove/install the vehicle battery before checking for DTCs.

   OK

   DTCs are not output.

   Result

   Proceed to
   OK
   NG

Result:

NG

GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [12/2017 - 10/2020]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2020 - 10/2022]

Result:

OK

See step  2

1. Enter the following menus: Body Electrical / Smart Access / Data List.
2. Read the Data List according to the display on the Techstream.

   Body Electrical > Smart Access > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   Unmatched Vehicle-ID	Key No. (incorrect or correct)	Yes or No	Yes: Communication malfunction No: Communication normal	The vehicle ID registered in the vehicle and the vehicle ID registered in the electrical key transmitter sub-assembly are different (if a key from another vehicle is brought into the vehicle exterior detection area while the doors are locked, "Yes" is displayed for "Unmatched Vehicle-ID" in the Data List). Other potential causes: An electrical key transmitter sub-assembly from a different vehicle is being used. A communication error due to wave interference. The electrical key transmitter sub-assembly or certification ECU (smart key ECU assembly) is malfunctioning.

   Body Electrical > Smart Access > Data List

   Tester Display
   Unmatched Vehicle-ID

   Result

   Result	Proceed to
   "No" is displayed	A
   "Yes" is displayed	B

Result:

B

See step  5

Result:

A

See step  3

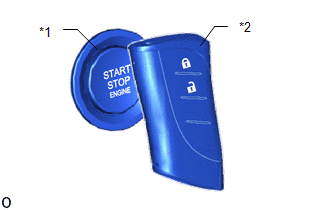

1. Remove the transmitter battery from the electrical key transmitter sub-assembly.

   Refer to REMOVAL [12/2017 - ]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Engine Switch
   *2	Electrical Key Transmitter Sub-assembly

2. With the brake pedal depressed, hold the electrical key transmitter sub-assembly near the engine switch and check if the power source mode changes.

   OK

   The power source mode changes.

   HINT:

   If the power source mode changes, the cabin verification is malfunctioning.

   Result

   Result	Proceed to
   The power source mode changes	A
   The power source mode does not change	B

Result:

B

GO TO OTHER PROBLEM (Power Source Mode does not Change to ON (IG and ACC)). Refer to  Power Source Mode does not Change to ON (IG and ACC) [12/2017 - 10/2023]

Result:

A

See step  4

1. Check that the steering unlocks when all of the following conditions are met.
   • The electrical key transmitter sub-assembly is inside the vehicle.
   • Engine switch is on (ACC) or on (IG).

   HINT:

   Check that the communication between the steering lock ECU (steering lock actuator with ECU assembly) and certification ECU (smart key ECU assembly) is normal.

   OK

   The steering unlocks.

   Result

   Proceed to
   OK
   NG

Result:

NG

GO TO OTHER PROBLEM (Unable to Unlock Steering Wheel (Engine cannot Start)). Refer to  Unable to Unlock Steering Wheel (Engine cannot Start) [12/2017 - 10/2022]

Result:

OK

See step  5

1. Using another unregistered electrical key transmitter sub-assembly, perform the additional registration procedure.

   HINT:

   Refer to Registration.

   Refer to REGISTRATION [12/2017 - 10/2020] , or refer to REGISTRATION [10/2020 - 10/2022]

   OK

   Additional registration can be completed.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY (FIRST REGISTERED KEY WAS DEFECTIVE)

Result:

NG

See step  6

1. Temporarily replace the certification ECU (smart key ECU assembly) with a new one and register the electrical key transmitter sub-assemblies.

   Refer to REMOVAL [12/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020] , or refer to REMOVAL [10/2020 - 10/2022]

   OK

   All of the electrical key transmitter sub-assemblies could be registered to the new certification ECU (smart key ECY assembly) successfully.

   Result

   Proceed to
   OK
   NG

Result:

OK

END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

Result:

NG

GO TO OTHER PROBLEM (New key cannot be Registered). Refer to  New Key cannot be Registered [12/2017 - 10/2022]
