Components [01/2017 - ]

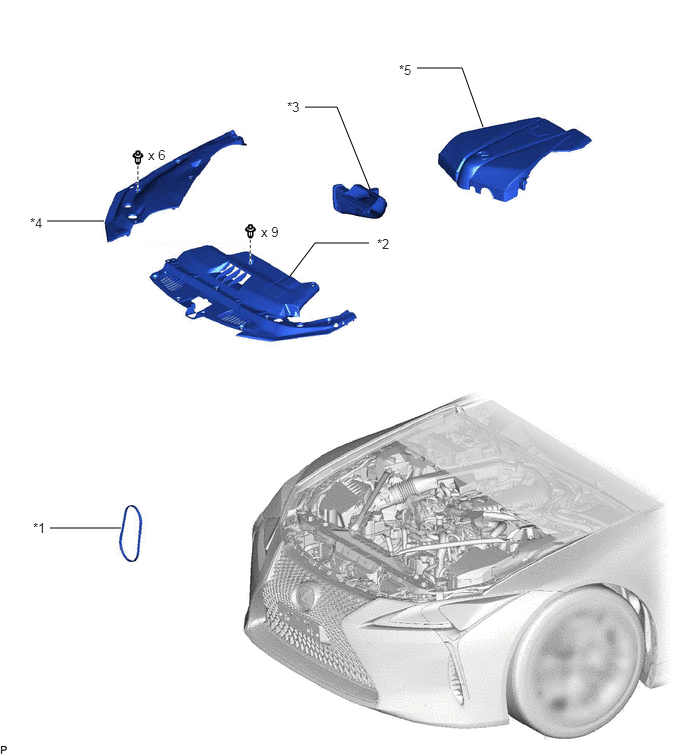

Fig 1: Drive Belt Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	V-RIBBED BELT	*2	LOWER RADIATOR AIR DEFLECTOR
*3	NO. 1 AIR CLEANER INLET	*4	RADIATOR SUPPORT TO FRAME SEAL RH
*5	V-BANK COVER SUB-ASSEMBLY	-	-
