Components [01/2017 - ]

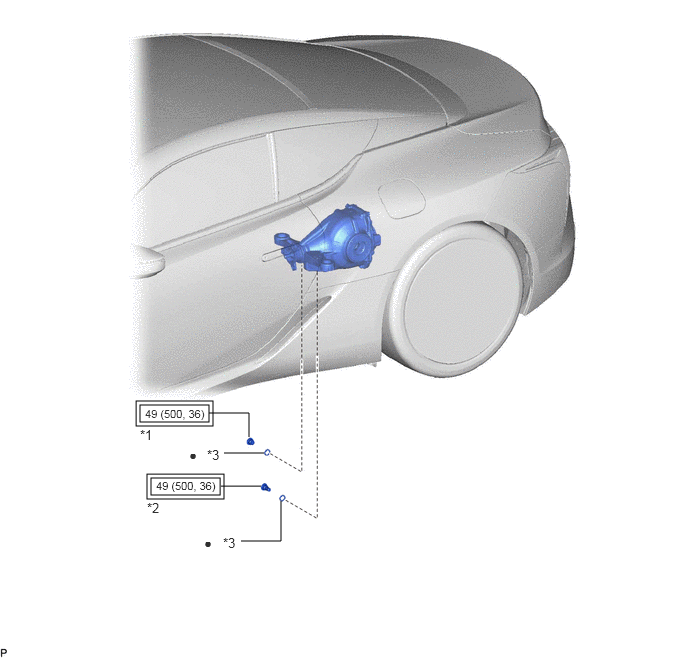

Fig 1: Differential Oil Replacement Components With Torque Specifications
GTY816955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR DIFFERENTIAL FILLER PLUG *2 REAR DIFFERENTIAL DRAIN PLUG
*3 GASKET - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) • Non-reusable part
