Components [01/2017 - ]

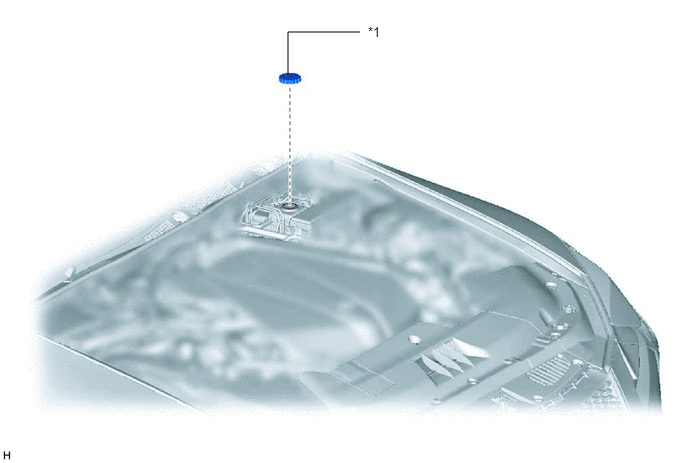

Fig 1: Brake Fluid Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BRAKE MASTER CYLINDER RESERVOIR FILLER CAP

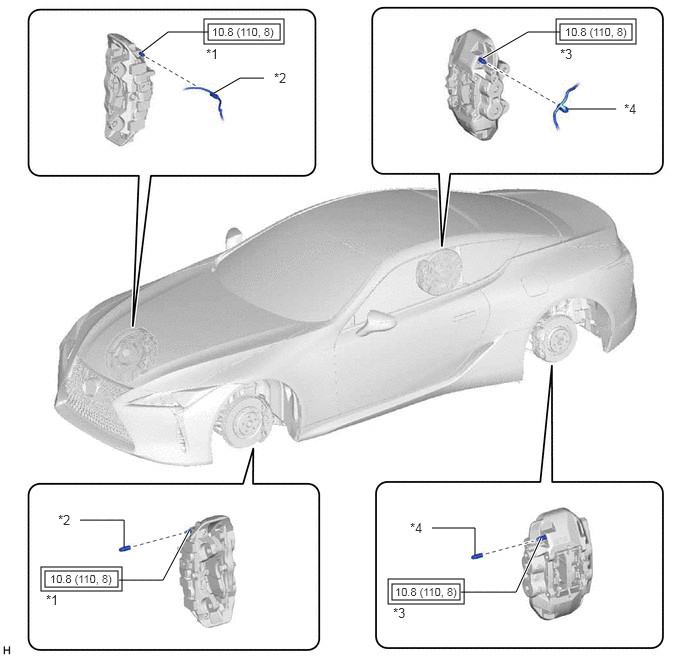

Fig 2: Brake Fluid Replacement Components With Torque Specifications (2 Of 2)

*1	FRONT DISC BRAKE BLEEDER PLUG	*2	FRONT DISC BRAKE BLEEDER PLUG CAP
*3	REAR DISC BRAKE BLEEDER PLUG	*4	REAR DISC BRAKE BLEEDER PLUG CAP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	-	-
