Components [01/2017 - ]

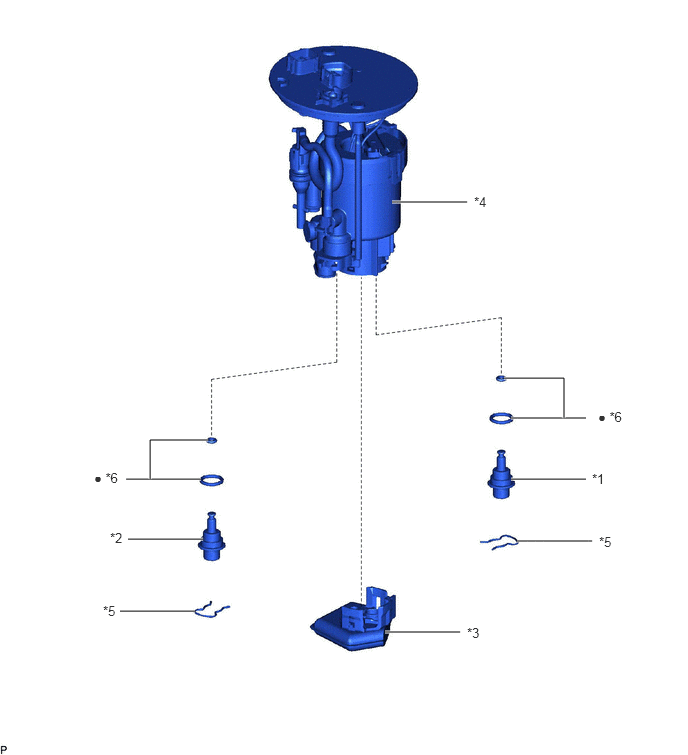

Fig 1: Fuel Main Valve Replacement Components
GTY807289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL MAIN VALVE ASSEMBLY (for Low Pressure) *2 FUEL MAIN VALVE ASSEMBLY (for High Pressure)
*3 FUEL PUMP FILTER *4 FUEL SUCTION PLATE SUB-ASSEMBLY (FUEL FILTER)
*5 CLIP *6 O-RING
• Non-reusable part - -
