On-Vehicle Inspection [01/2017 - ]: Procedure

WARNING:

To prevent injury due to contact with an operating V-ribbed belt or cooling fan, keep your hands and clothing away from the V-ribbed belt and cooling fans when working in the engine compartment with the engine running or the power switch on (IG).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform "Inspection After Repairs" after repairing air leaks in the intake system.

Refer to INITIALIZATION [01/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 04/2020] , or refer to INITIALIZATION [04/2020 - ]

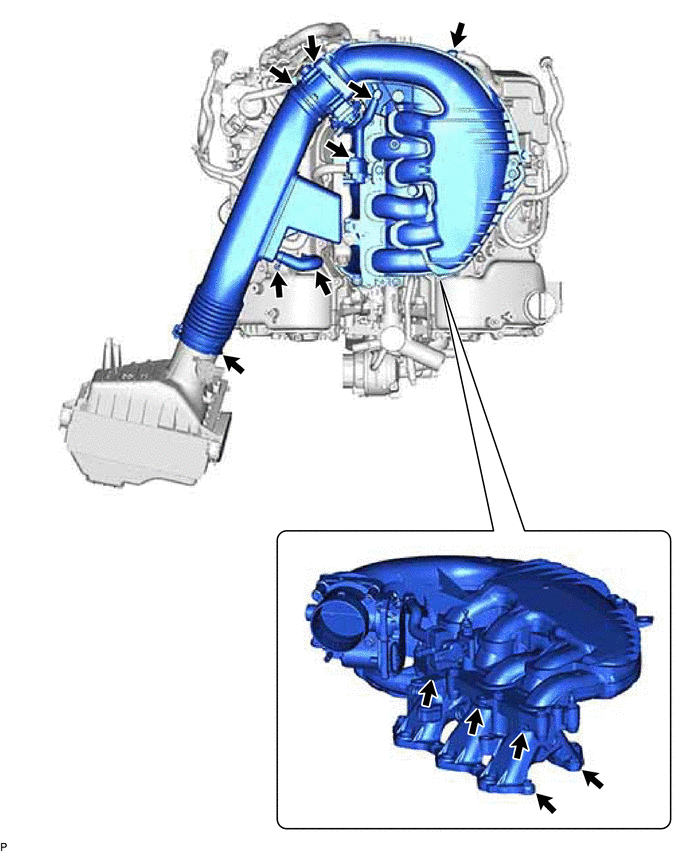

1. Check that there are no vacuum leaks at the points shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Perform Inspection After Repair after repairing vacuum leaks in the intake system.

   Refer to INITIALIZATION [01/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 04/2020] , or refer to INITIALIZATION [04/2020 - ]
