Components [01/2017 - ]

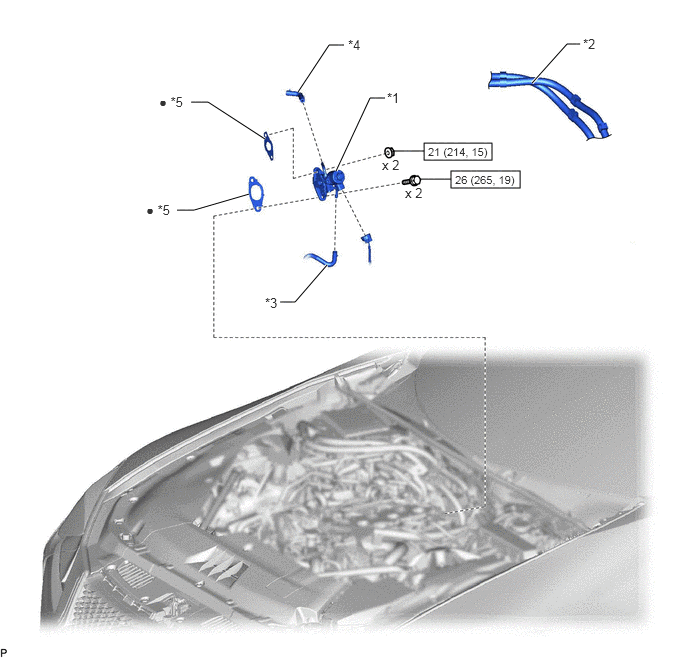

Fig 1: EGR Valve Replacement Components With Torque Specifications
GTY817777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 EGR VALVE ASSEMBLY *2 GENERATOR CABLE AND MOTOR CABLE
*3 NO. 15 WATER BY-PASS HOSE *4 WATER BY-PASS HOSE
*5 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
