Components [01/2017 - ]

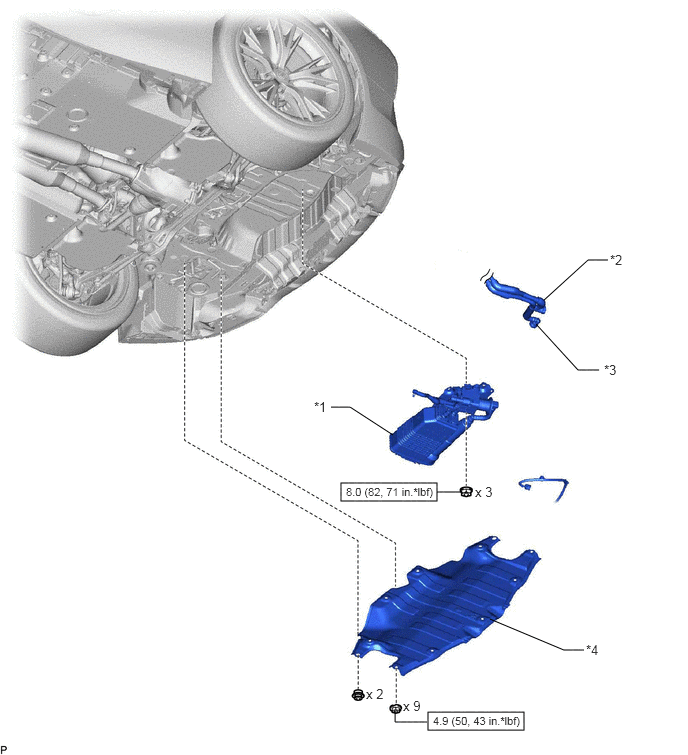

Fig 1: Canister Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CHARCOAL CANISTER ASSEMBLY	*2	CHARCOAL CANISTER OUTLET TUBE SUB-ASSEMBLY
*3	FUEL TANK VENT HOSE SUB-ASSEMBLY	*4	MAIN MUFFLER HEAT INSULATOR
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

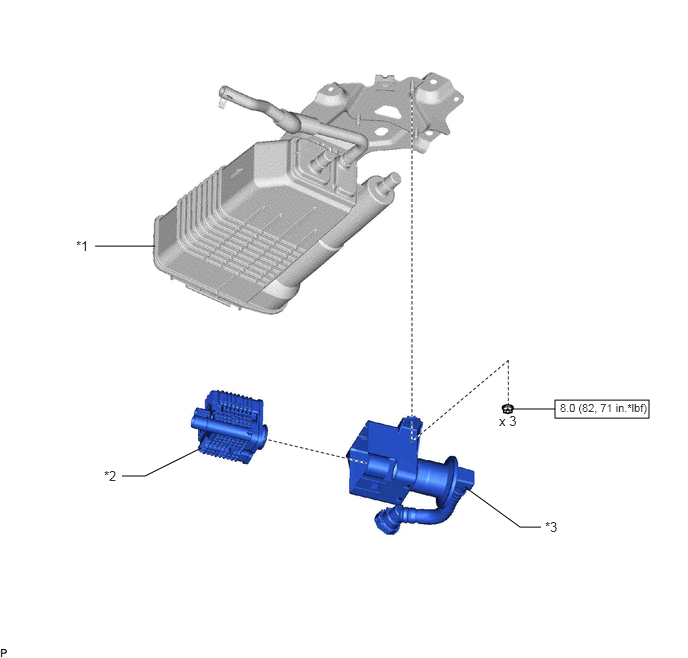

Fig 2: Canister Replacement Components With Torque Specifications (2 Of 2)

*1	CHARCOAL CANISTER ASSEMBLY	*2	CANISTER PUMP MODULE
*3	FILTER ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
