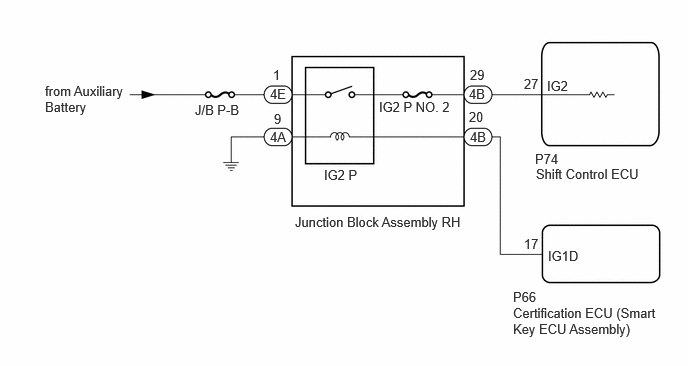

DTC P176D-12: IG2 Signal (Gear Shift Control Module "A") Circuit Short to Auxiliary Battery [05/2023 - ]: Wiring Diagram

GTY1241717

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
