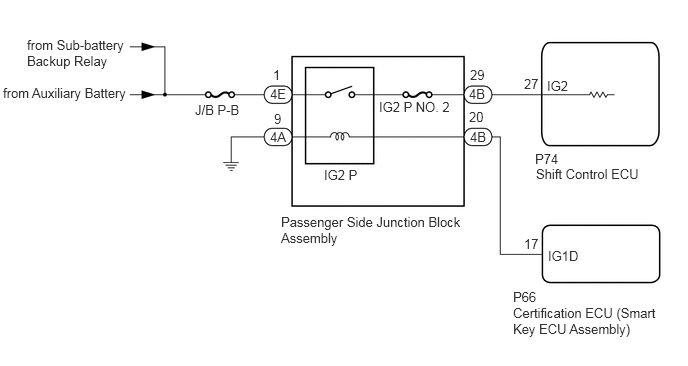

DTC P176D-12: IG2 Signal (Gear Shift Control Module "A") Circuit Short to Auxiliary Battery [01/2017 - 05/2023]: Wiring Diagram

GTY792588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
