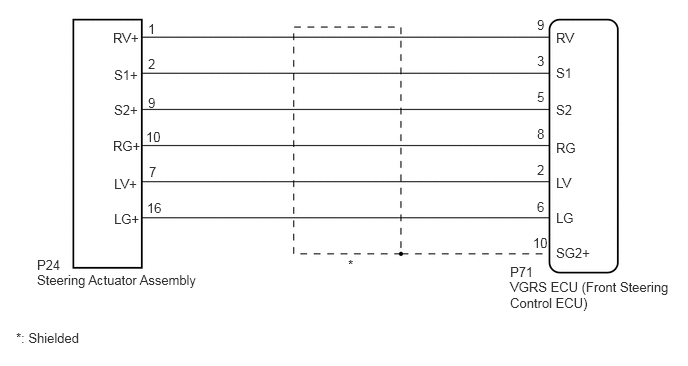

DTC C15A3/63: Motor Rotation Angle Not Detected; DTC C15C5/69: Motor Rotation Signal Not Detected [01/2017 - 09/2018]: Wiring Diagram

GTY838559

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
