System Diagram [01/2017 - 05/2023]

WIPER AND WASHER SYSTEM

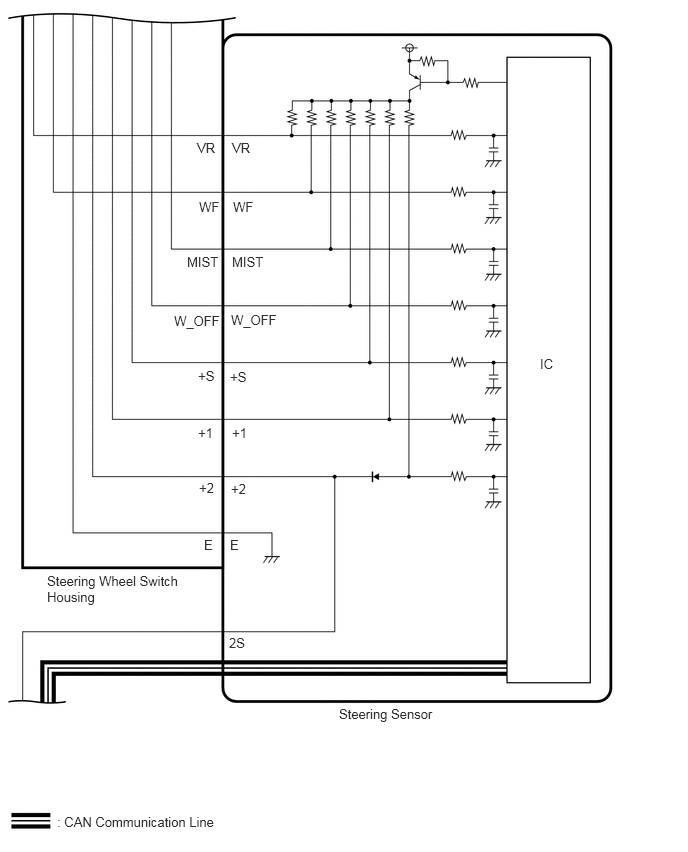

Fig 1: Wiper and Washer System Diagram (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

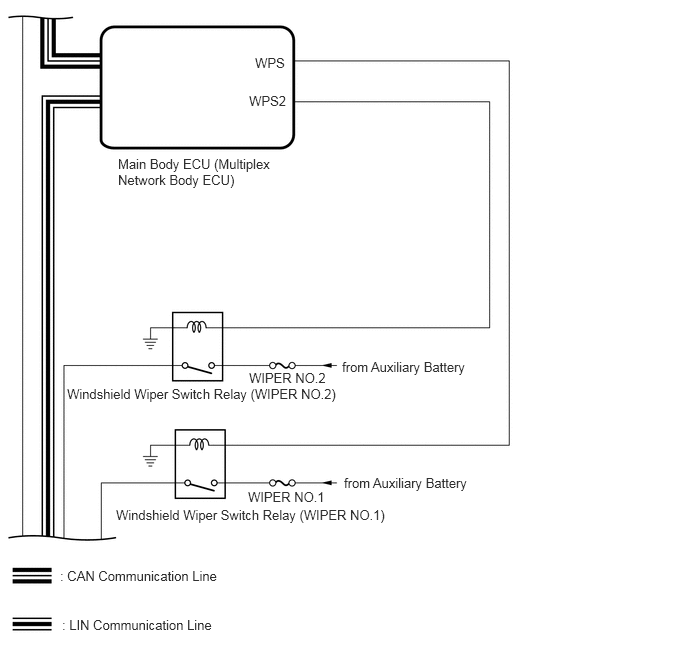

Fig 2: Wiper and Washer System Diagram (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

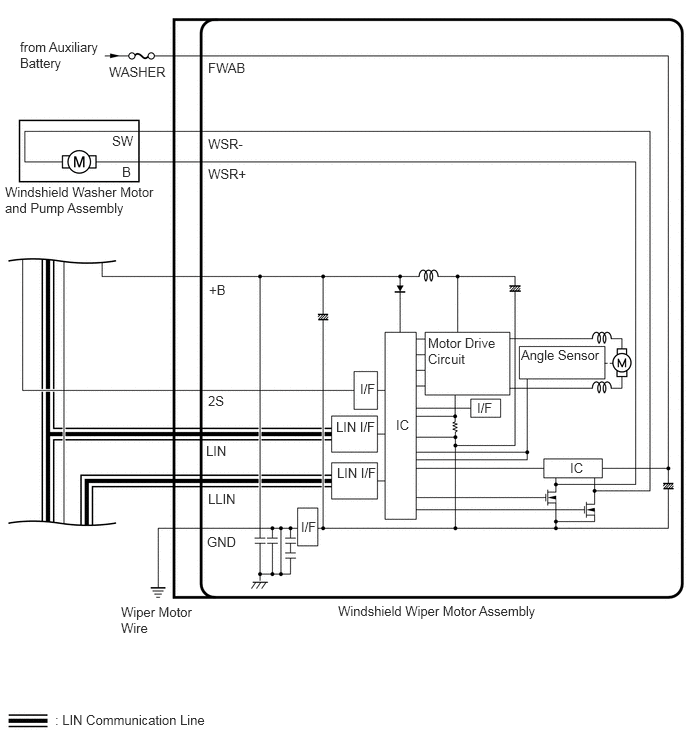

Fig 3: Wiper and Washer System Diagram (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

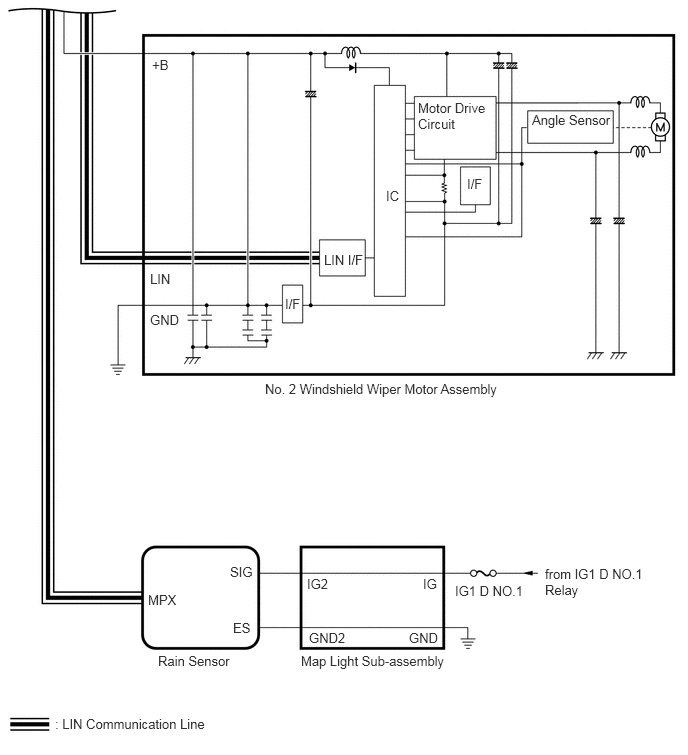

Fig 4: Wiper and Washer System Diagram (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Wiper and Washer System Diagram (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Wiper and Washer System Diagram (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
WASHER FLUID LEVEL WARNING SYSTEM

Fig 7: Washer Fluid Level Warning System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
