System Diagram [06/2019 - 04/2020]

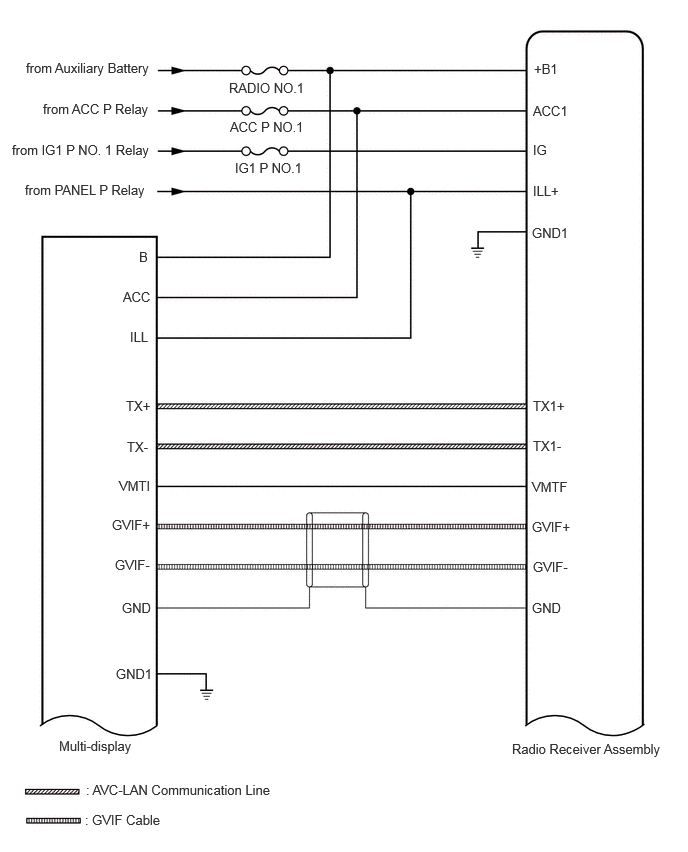

Fig 1: Navigation System Diagram (1 Of 11)

GTY809744

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

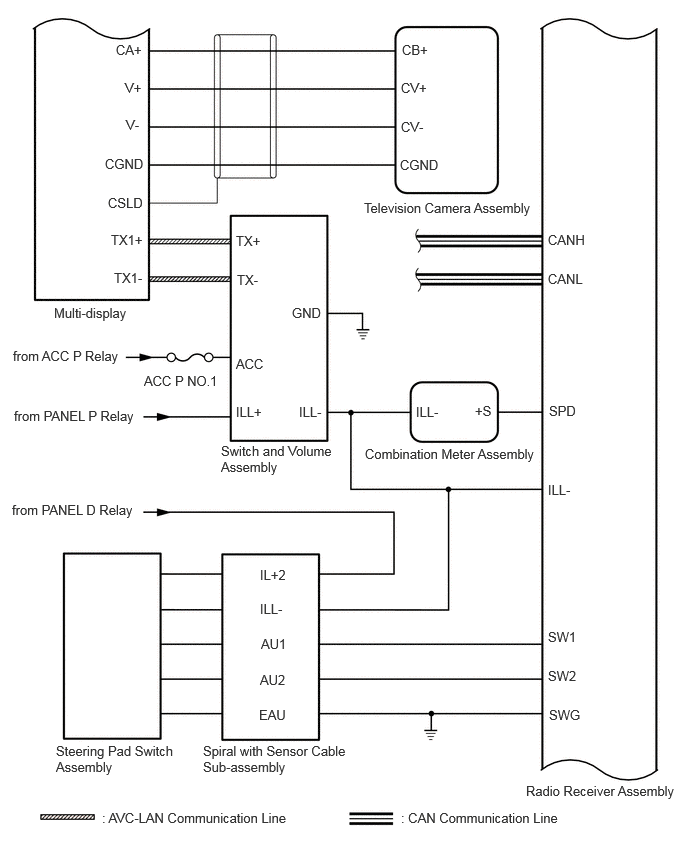

Fig 2: Navigation System Diagram (2 Of 11)

GTY960785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

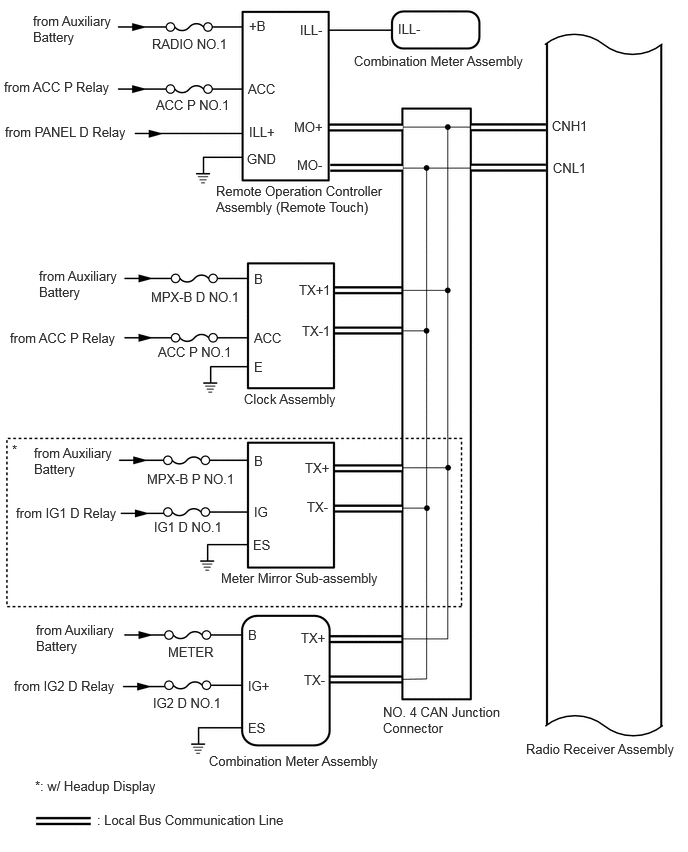

Fig 3: Navigation System Diagram (3 Of 11)

GTY799770

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

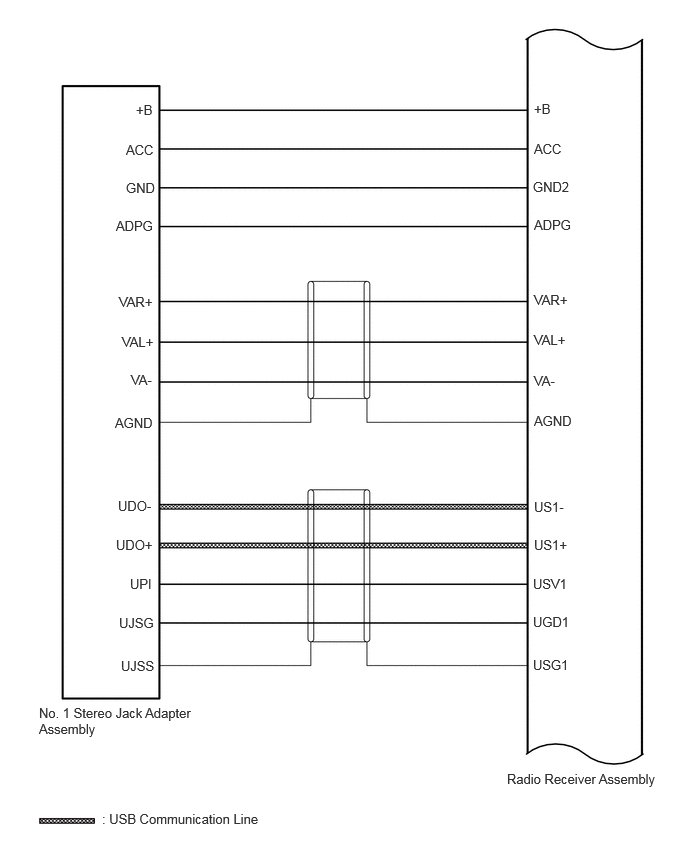

Fig 4: Navigation System Diagram (4 Of 11)

GTY815493

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

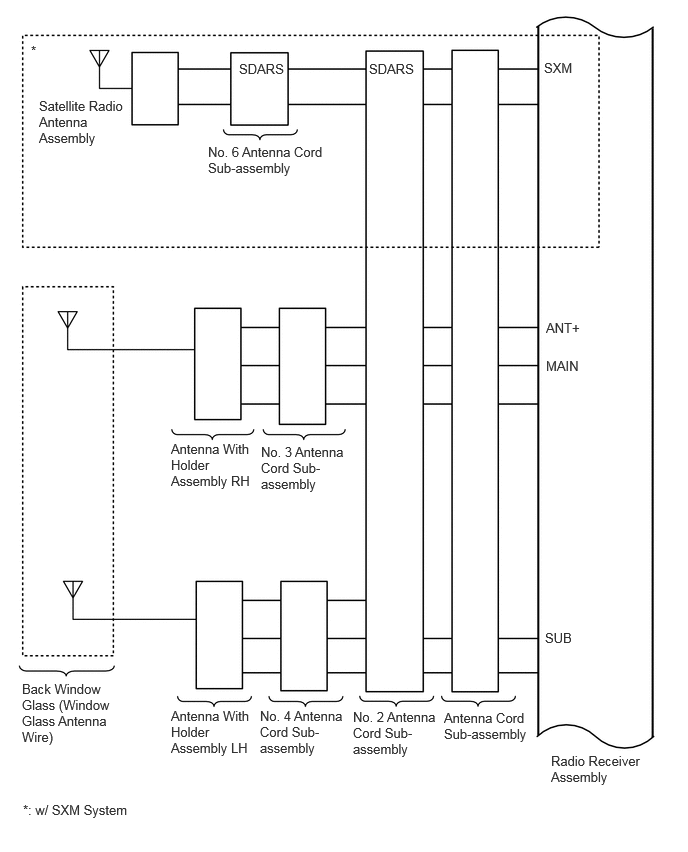

Fig 5: Navigation System Diagram (5 Of 11)

GTY787397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

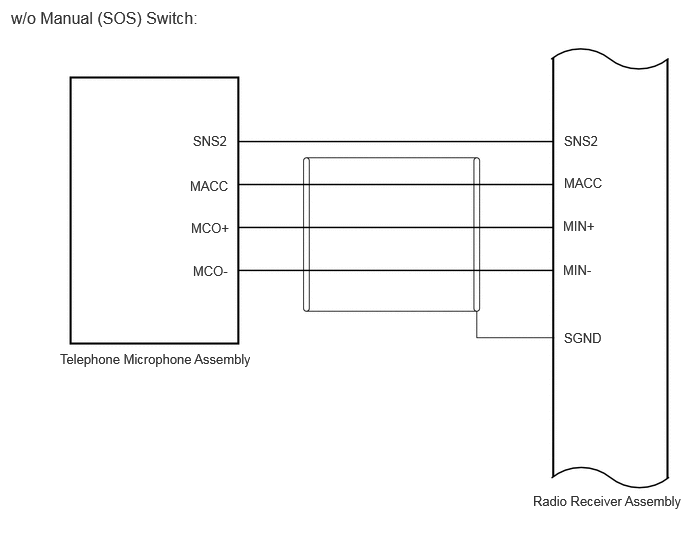

Fig 6: Navigation System Diagram (6 Of 11)

GTY959989

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

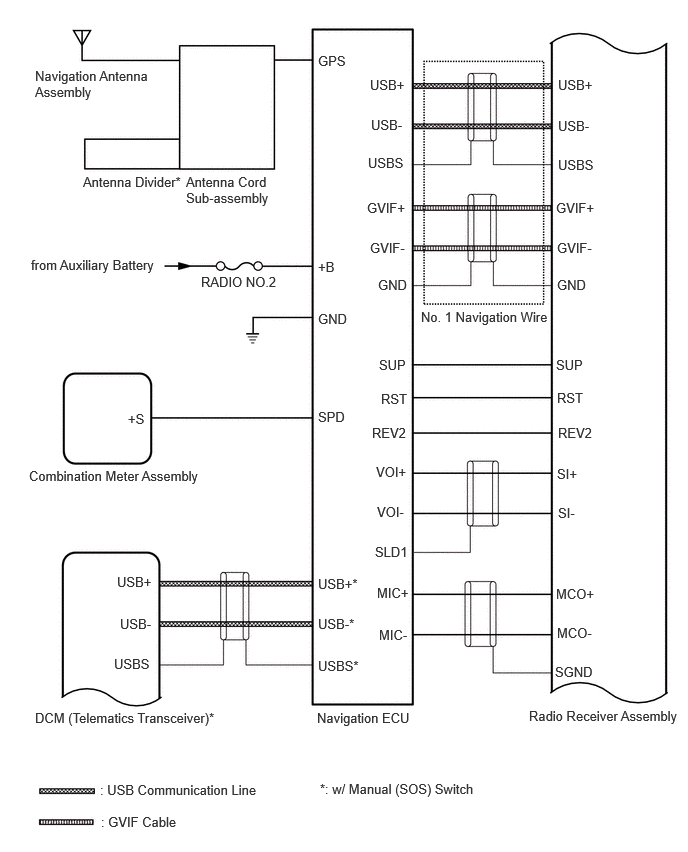

Fig 7: Navigation System Diagram (7 Of 11)

GTY1174449

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

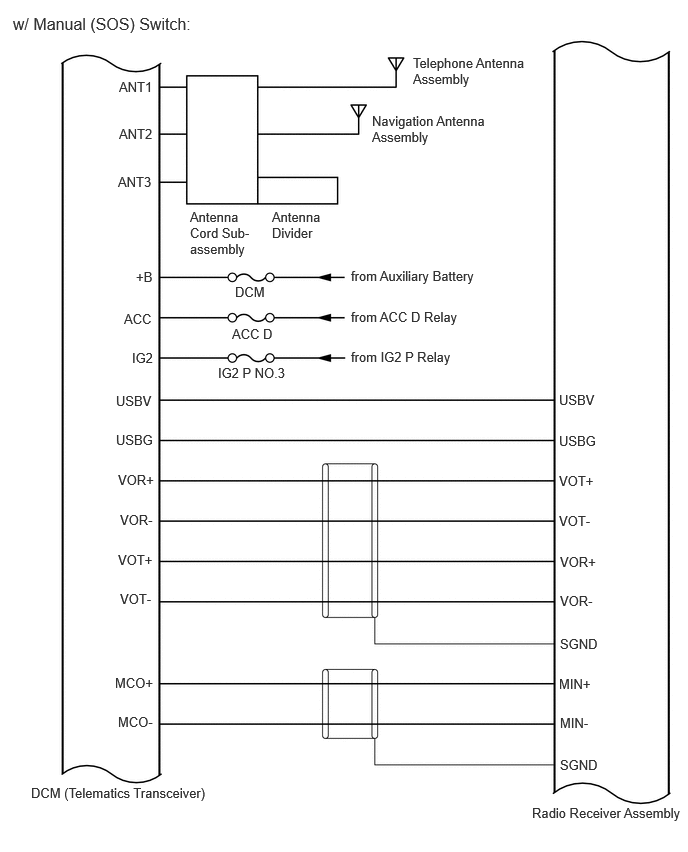

Fig 8: Navigation System Diagram (8 Of 11)

GTY1175594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

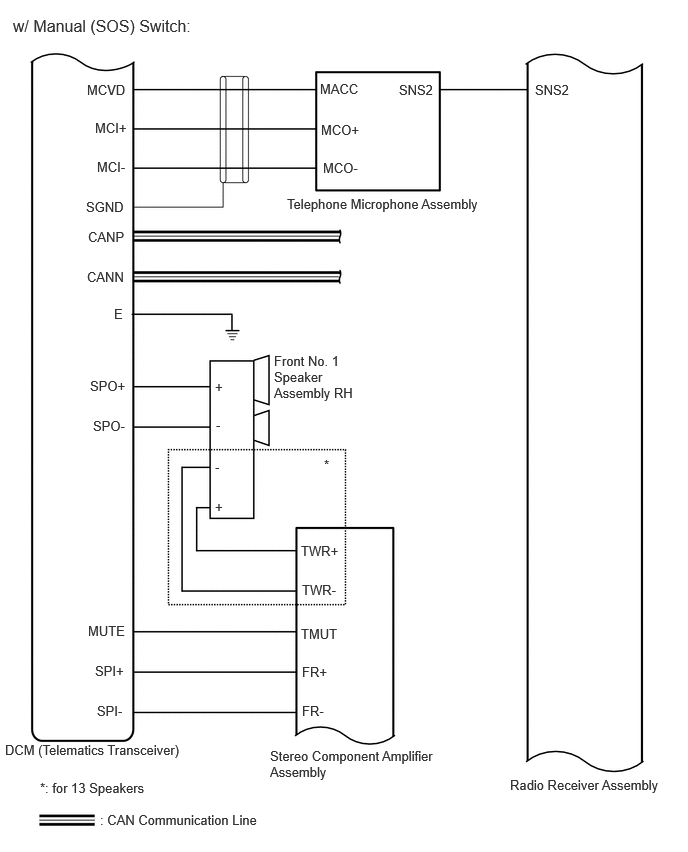

Fig 9: Navigation System Diagram (9 Of 10)

GTY1176166

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

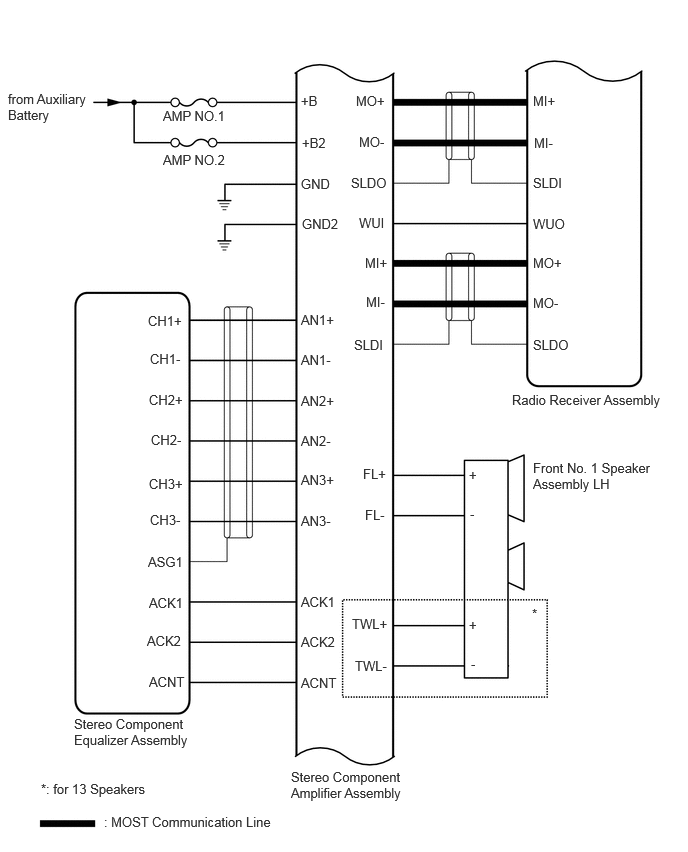

Fig 10: Navigation System Diagram (10 Of 11)

GTY818729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

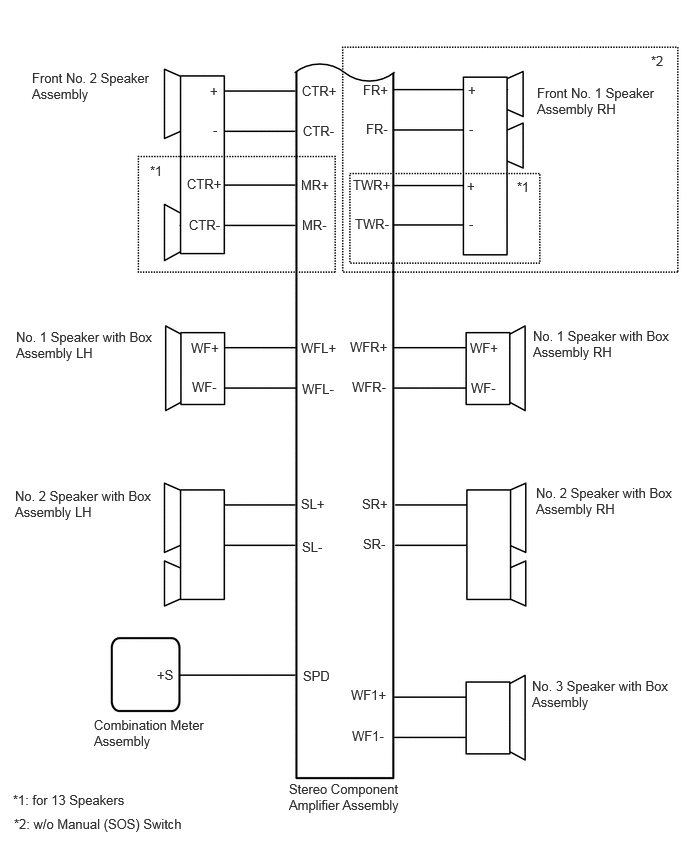

Fig 11: Navigation System Diagram (11 Of 11)

GTY961015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
