Components [01/2017 - ]

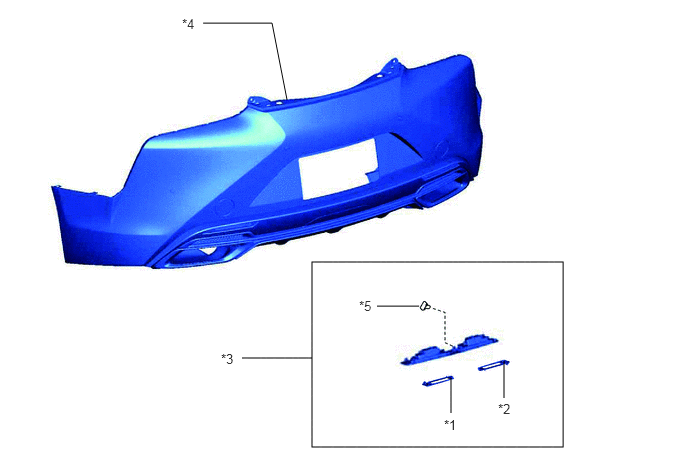

Fig 1: License Plate Light Assembly Replacement Components
GTY831351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BACK DOOR FINISH PANEL COVER LH *2 BACK DOOR FINISH PANEL COVER RH
*3 LICENSE PLATE LIGHT SUB-ASSEMBLY *4 REAR BUMPER ASSEMBLY
*5 RETAINER - -
