Components [01/2017 - ]

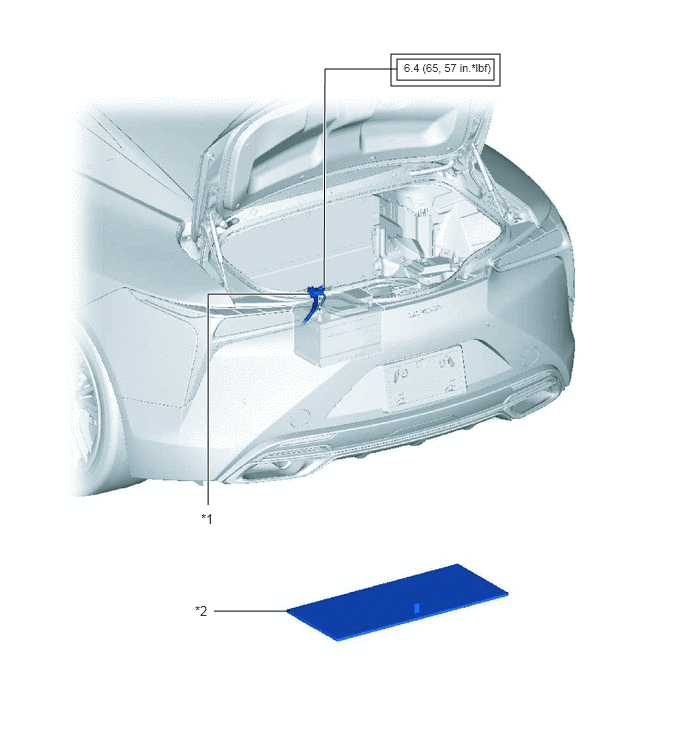

Fig 1: Automatic Light Control Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NEGATIVE AUXILIARY BATTERY TERMINAL	*2	NO. 2 DECK BOARD
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

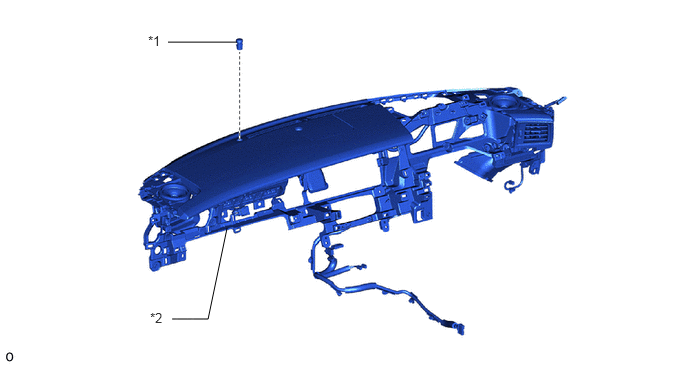

Fig 2: Automatic Light Control Sensor Replacement Components (2 Of 2)

AUTOMATIC LIGHT CONTROL SENSOR

INSTRUMENT PANEL ASSEMBLY
