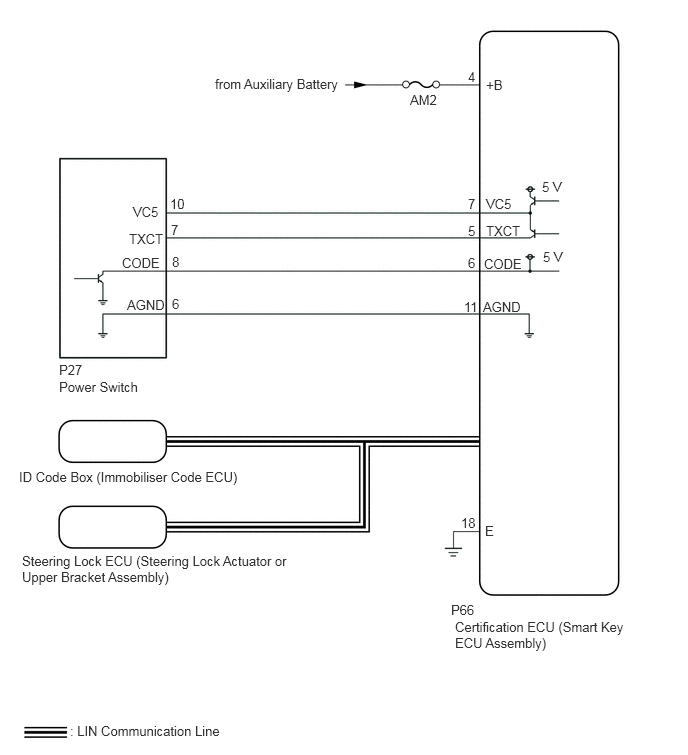

New Key cannot be Registered [01/2017 - 05/2023]: Wiring Diagram

GTY789166

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
