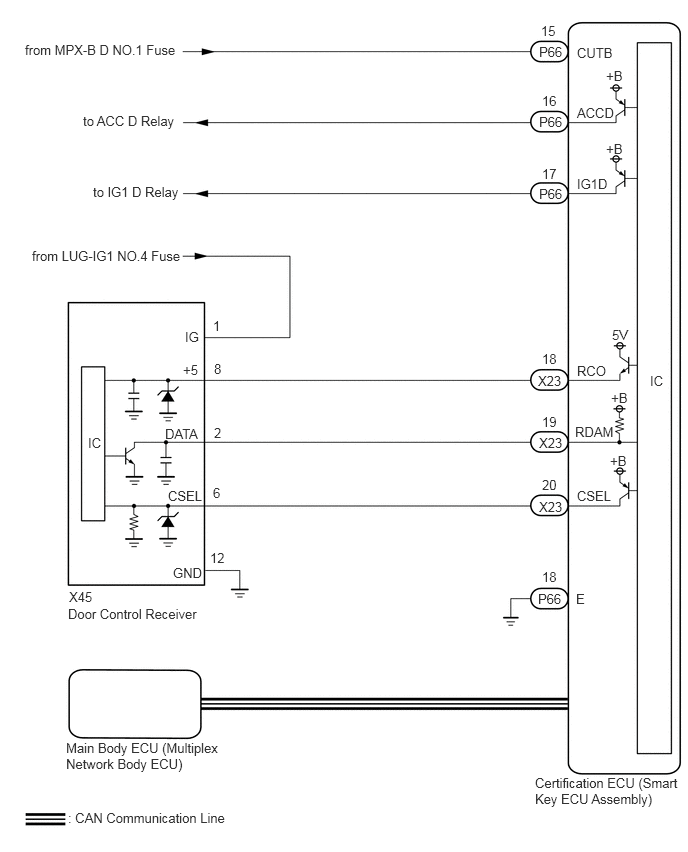

All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [01/2017 - 05/2023]: Wiring Diagram

GTY830271

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
