Installation [07/2020 - 05/2023]: Procedure

  1. INSTALL TILT AND TELESCOPIC SWITCH
    1. Engage the claw to install the tilt and telescopic switch.
    2. Connect the tilt and telescopic connector to the tilt and telescopic switch.
    3. Connect the airbag connector to the spiral cable with sensor sub-assembly.

      HINT:

      Refer to How to Connect or Disconnect Airbag Connector:

      Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [07/2020 - 05/2023]

  2. INSTALL LOWER STEERING COLUMN COVER SUB-ASSEMBLY
    1. Insert the lower steering column cover sub-assembly in the direction indicated by the arrow.
      NOTE:

      Do not damage the tilt and telescopic switch.

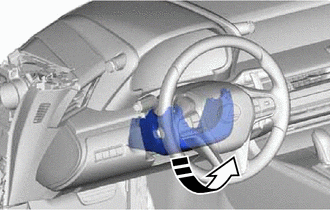

      GTY785990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 4 claws to install the lower steering column cover sub-assembly to the upper steering column cover.
    3. Install the 3 screws.
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to INSTALLATION [07/2020 - 05/2023]

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [07/2020 - 05/2023]

  4. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
    1. Reset the auto tilt away function setting to the previous condition by changing the customize parameter.

      Refer to CUSTOMIZE PARAMETERS [07/2020 - ]
