DTC P0504: Brake Switch "A" / "B" Correlation [07/2020 - ]: Procedure
- READ VALUE USING TECHSTREAM (ST1 AND STOP LIGHT SWITCH)
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine / Data List / Gas Throttle / Stop Light Switch and ST1.
Powertrain > Engine > Data List
Tester Display ST1 Stop Light Switch - Read the value displayed on the Techstream.
OK
Brake Pedal Operation Stop Light Switch ST1 Depressed ON ON Released OFF OFF Result
Proceed to OK NG
Result:
OK
CHECK FOR INTERMITTENT PROBLEMS. Refer to CHECK FOR INTERMITTENT PROBLEMS [07/2020 - ]
Result:
NG
See step 2
- CHECK TERMINAL VOLTAGE (POWER SOURCE OF STOP LIGHT SWITCH ASSEMBLY)
*a Front view of wire harness connector
(to Stop Light Switch Assembly)- Disconnect the stop light switch assembly connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition A4-1 (B) - Body ground Always 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - STOP LIGHT SWITCH ASSEMBLY)
Result:
OK
See step 3
- CHECK TERMINAL VOLTAGE (POWER SOURCE OF STOP LIGHT SWITCH ASSEMBLY)
*a Front view of wire harness connector
(to Stop Light Switch Assembly)- Disconnect the stop light switch assembly connector.
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition A4-5 (B) - Body ground Engine switch on (IG) 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (JUNCTION BLOCK ASSEMBLY LH - STOP LIGHT SWITCH ASSEMBLY)
Result:
OK
See step 4
- CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - BODY GROUND)
- Disconnect the stop light switch assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A4-3 (GND) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 5
- CHECK TERMINAL VOLTAGE (STP AND ST1- VOLTAGE)

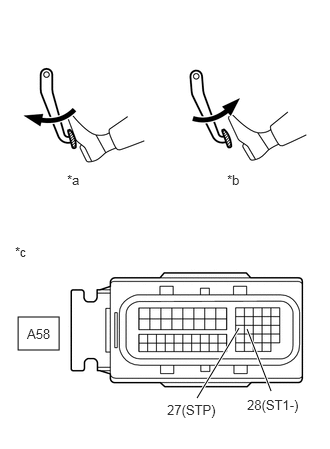

*a Brake Pedal Depressed *b Brake Pedal Released *c Front view of wire harness connector
(to ECM)- Disconnect the ECM connector.
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Brake Pedal Operation Specified Condition A58-28 (ST1-) - Body ground Released 7.5 to 14 V Depressed Below 1.5 V A58-27 (STP) - Body ground Released Below 1.5 V Depressed 7.5 to 14 V Result
Proceed to OK NG
Result:
OK
REPLACE ECM. Refer to REMOVAL [07/2020 - 05/2023] , or refer to REMOVAL [05/2023 - ]
Result:
NG
See step 6
- CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - ECM)
- Disconnect the stop light switch assembly connector.
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A4-4 (L) - A58-28 (ST1-) Always Below 1 Ω A4-2 (L) - A58-27 (STP) Always Below 1 Ω A4-4 (L) or A58-28 (ST1-) - Body ground and other terminals Always 10 kΩ or higher A4-2 (L) or A58-27 (STP) - Body ground and other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE STOP LIGHT SWITCH ASSEMBLY. Refer to REMOVAL [07/2020 - 05/2023] , or refer to REMOVAL [05/2023 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
