Components [07/2020 - ]

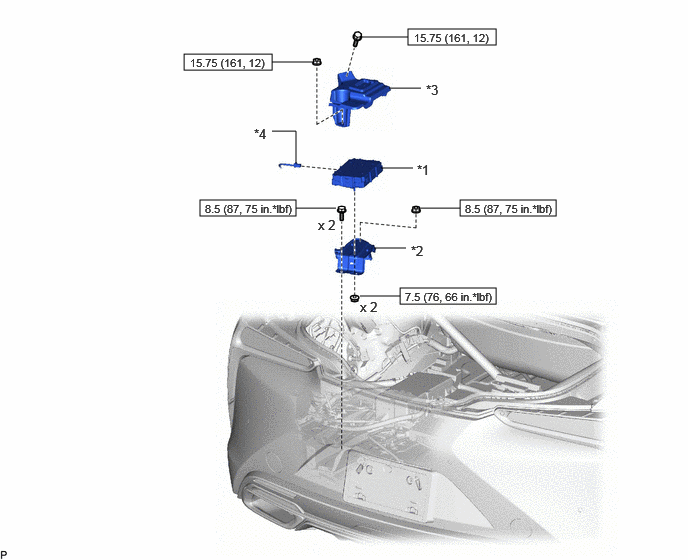

Fig 1: Brake Control Power Supply Replacement Components With Torque Specifications
GTY958014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BRAKE CONTROL POWER SUPPLY WITH BRACKET ASSEMBLY *2 FUEL PUMP CONTROL ECU BRACKET
*3 NO. 1 DECK BOARD BRACKET LH *4 CONNECTOR
N.m (kgf/cm, ft.lbf): Specified torque - -
