Components [07/2020 - ]

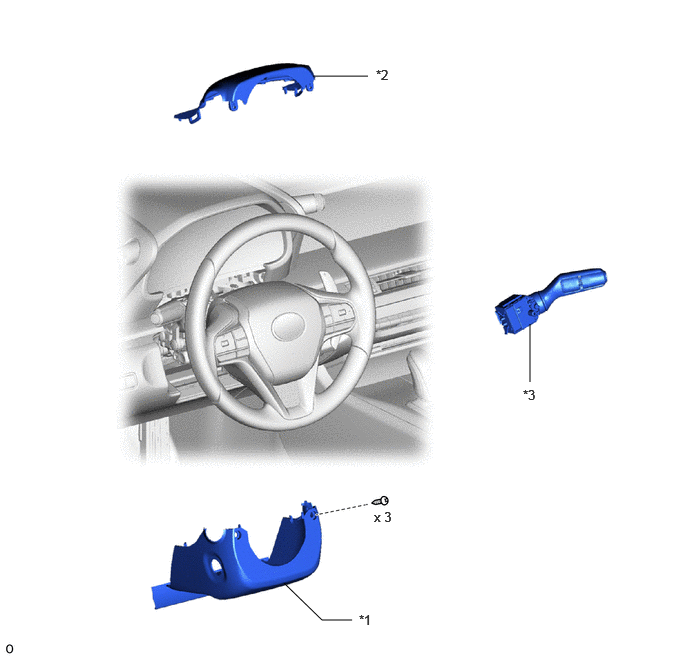

Fig 1: Wiper Switch Replacement Components
GTY949478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LOWER STEERING COLUMN COVER SUB-ASSEMBLY *2 UPPER STEERING COLUMN COVER
*3 WINDSHIELD WIPER SWITCH ASSEMBLY - -
