Installation [08/2021 - ]: Procedure

1. Attach the claw and install the center cluster module switch (transfer position switch) to the integration control and panel assembly.

1. Attach the claw and install the integration control and panel assembly to the multi-display assembly with bracket.
   NOTE:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

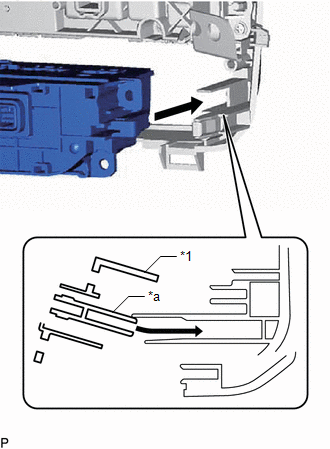

   *1	Integration Control And Panel Assembly
   *a	Guide Rib

   Install the installation guide ribs on both sides of the center cluster module switch (transfer positon switch) while placing the upper surface as shown in the illustration.

2. Install the 4 screws.

Refer to INSTALLATION [08/2021 - ]
