Components [08/2015 - ]

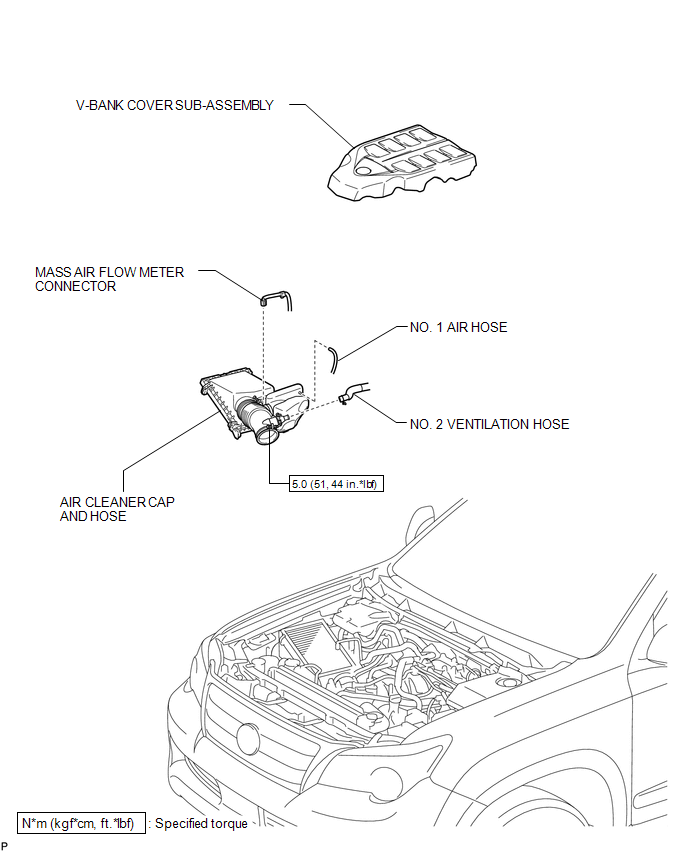

Fig 1: Fuel Pressure Regulator Replacement Components With Torque Specifications (1 Of 2)
GTY676346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

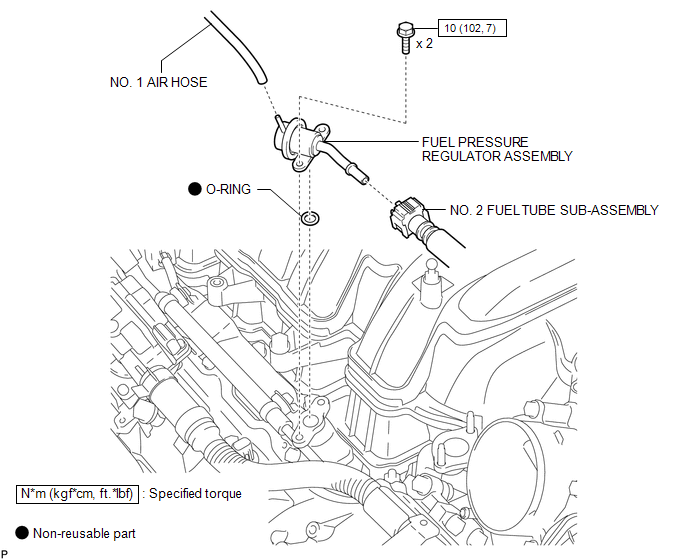

Fig 2: Fuel Pressure Regulator Replacement Components With Torque Specifications (2 Of 2)
GTY654503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
