Inspection [08/2015 - ]: Procedure

  1. INSPECT ENGINE OIL LEVEL SENSOR

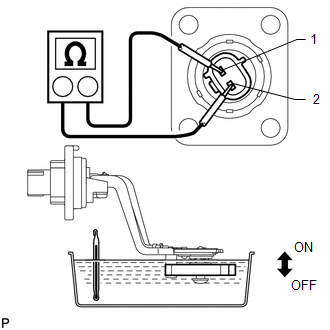

    1. Partially immerse the engine oil level sensor in an oil bath and warm up the oil bath.
      GTY666721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 ON, 20°C (68°F) Below 1 Ω
      OFF, 20°C (68°F)
      ON, 60°C (140°F)
      OFF, 60°C (140°F) 10 kΩ or higher

      If the result is not as specified, replace the engine oil level sensor.
