Reassembly [08/2015 - ]: Procedure

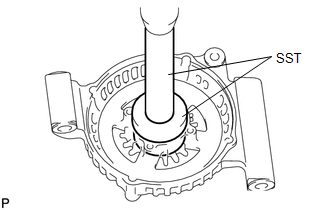

- INSTALL GENERATOR DRIVE END FRAME BEARING

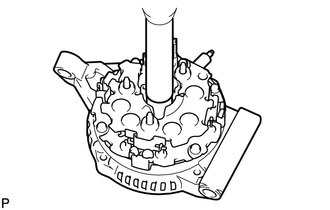

- INSTALL GENERATOR ROTOR ASSEMBLY
- Install the generator rotor to the drive end frame.
- Place the generator washer on the rotor.
- INSTALL GENERATOR COIL ASSEMBLY
- INSTALL GENERATOR BRUSH HOLDER ASSEMBLY

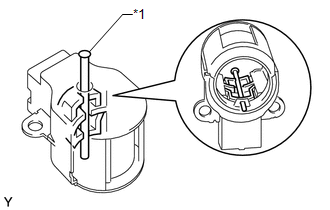

- While pushing the 2 brushes into the generator brush holder, insert a pin with a diameter of 1.0 mm (0.0394 in.) into the brush holder hole.TEXT IN ILLUSTRATION
*1 Pin - Install the generator brush holder with the 2 screws.
Torque: 1.8 N*m (18 kgf*cm, 16 in.*lbf)

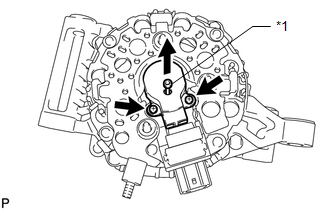

- Pull out the pin from the generator brush holder.TEXT IN ILLUSTRATION
*1 Pin
- While pushing the 2 brushes into the generator brush holder, insert a pin with a diameter of 1.0 mm (0.0394 in.) into the brush holder hole.

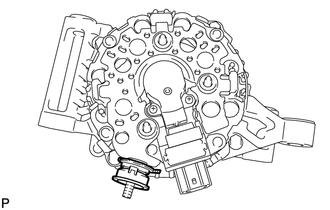

- INSTALL TERMINAL INSULATOR

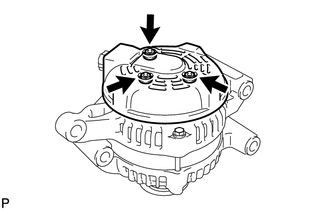

- INSTALL GENERATOR REAR END COVER
- INSTALL GENERATOR PULLEY
- Temporarily install the generator pulley by hand.
- Mount the generator in a vise between aluminum plates.
- Install SST 1-A to the pulley shaft.
- SST: 09820-63011
- 09820-06010
- 09820-06021
HINT:
SST 1-A and B 09820-06010 SST 2 09820-06021 - SST: 09820-63011
- Install SST 1-B to SST 1-A.

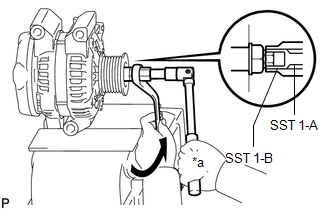

- Hold SST 1-A with a torque wrench and turn SST 1-B clockwise with the specified torque.
Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)
TEXT IN ILLUSTRATION*a Hold Turn NOTE:Check that SST is secured to the rotor shaft.

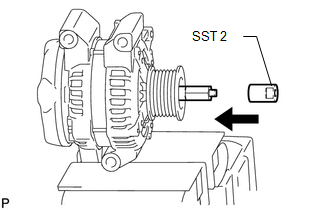

- Insert SST 2 and attach it to the pulley nut.TEXT IN ILLUSTRATION

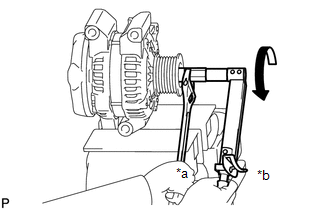

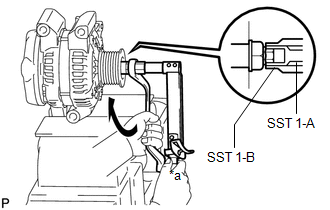

Insert - Tighten the pulley nut by turning SST 1-A in the direction shown in the illustration.
Torque: 133 N*m (1351 kgf*cm, 98 ft.*lbf)
TEXT IN ILLUSTRATION*a Hold *b Turn HINT:
Hold the adjustable wrench against the vise and tighten the nut securely.
- Remove the generator from SST 2.
- Turn SST 1-B, and then remove SST 1-A and B.TEXT IN ILLUSTRATION
*a Hold Turn - Turn the pulley and check that the pulley moves smoothly.
