Components [08/2015 - ]

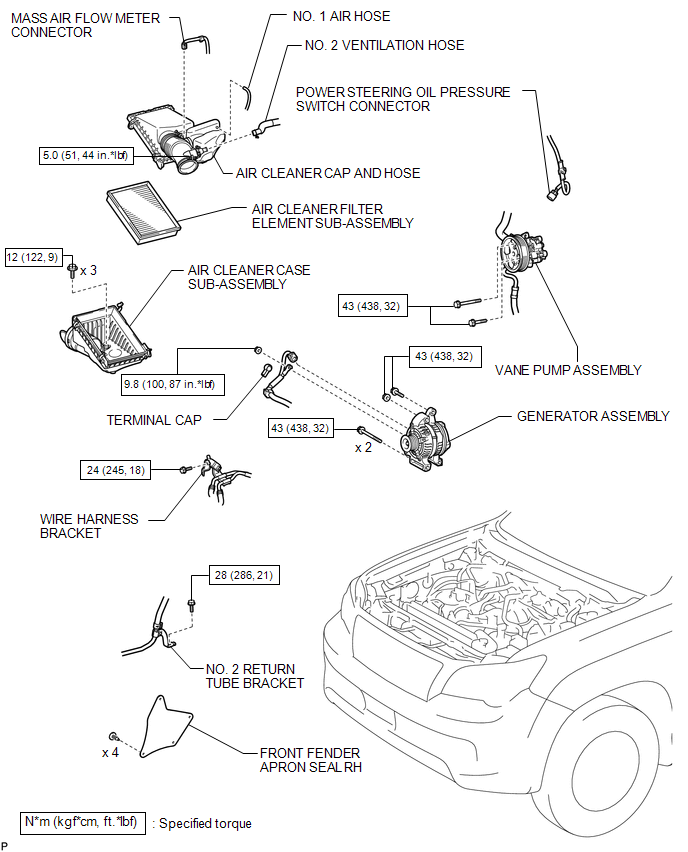

Fig 1: Generator Replacement Components With Torque Specifications (1 Of 2)
GTY638786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

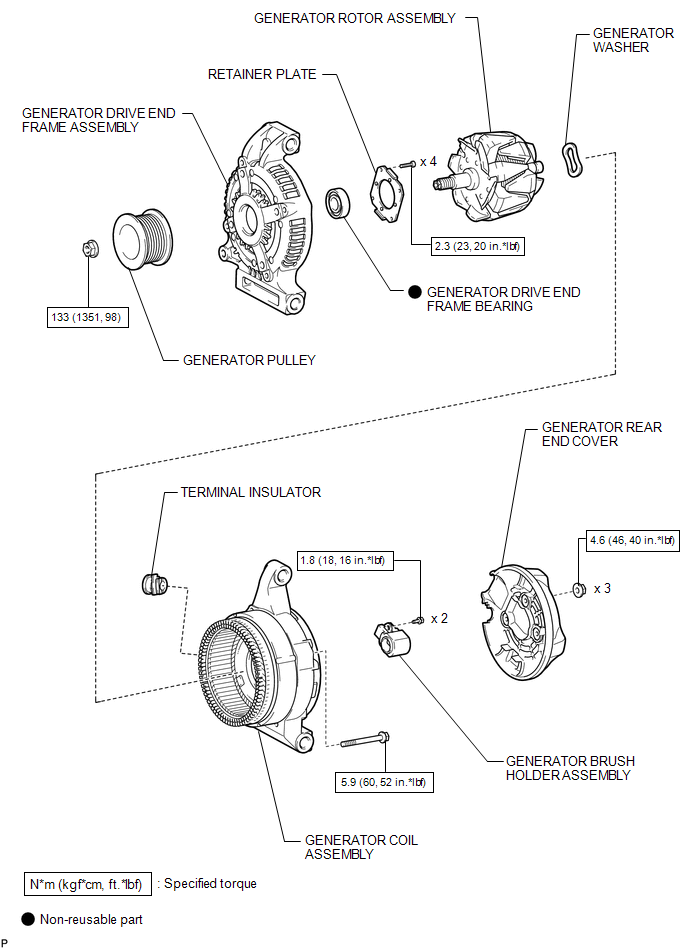

Fig 2: Generator Replacement Components With Torque Specifications (2 Of 2)
GTY636577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
