Parts Location [08/2019 - ]: Illustration

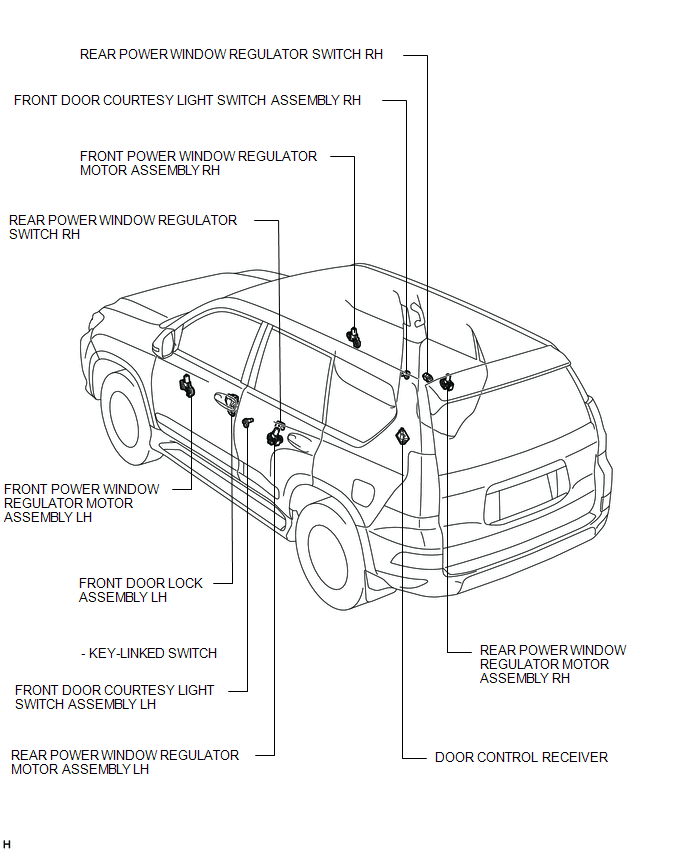

Fig 1: Power Window Control System Components Location (1 Of 2)
GTY952629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

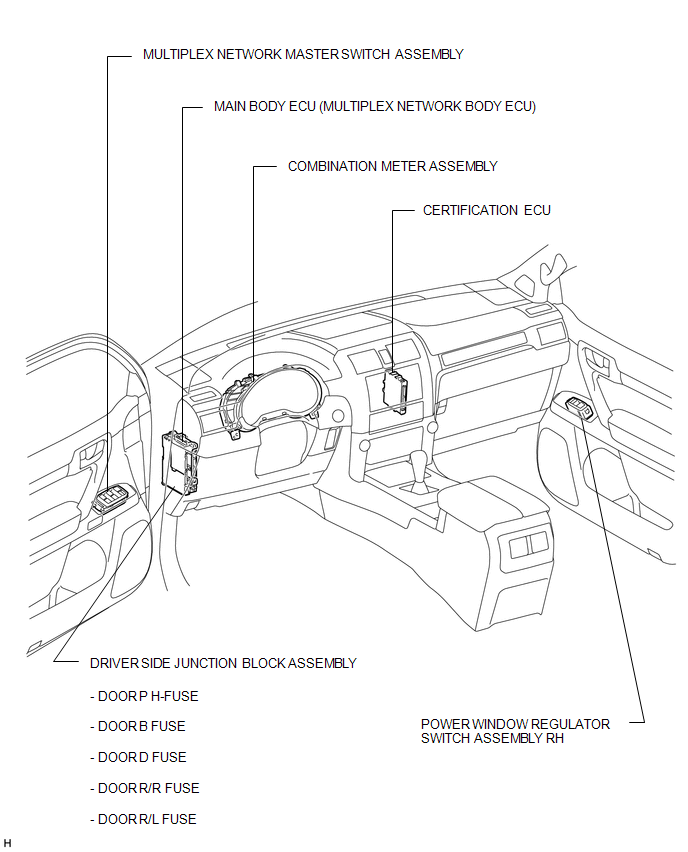

Fig 1: Power Window Control System Components Location (2 Of 2)
GTY948931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
