System Diagram [08/2015 - 08/2019]

The configuration of the electronic control system for the A760F automatic transmission is as shown in the following chart.

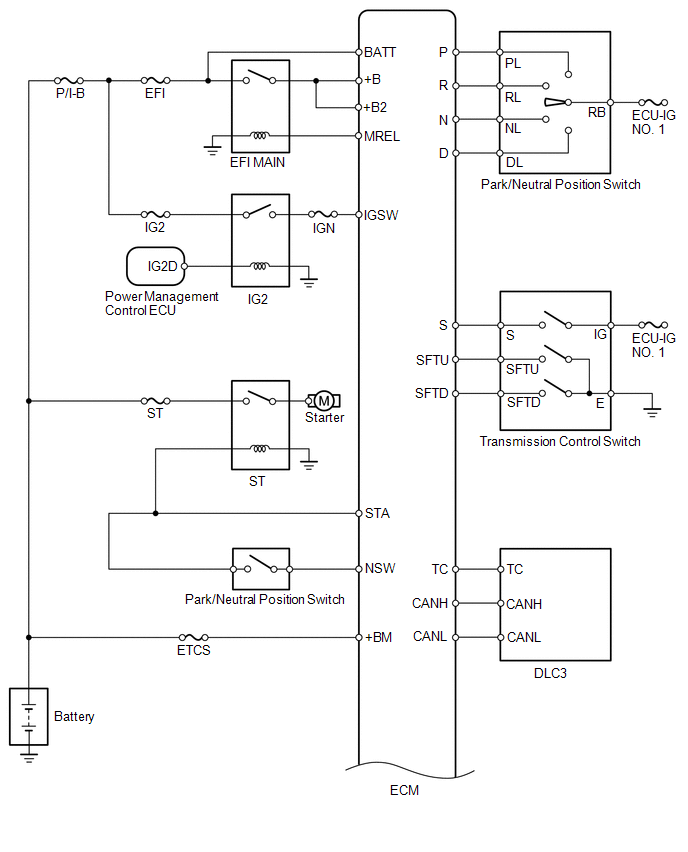

Fig 1: Automatic Transmission System Wiring Diagram (1 Of 2)
GTY648972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

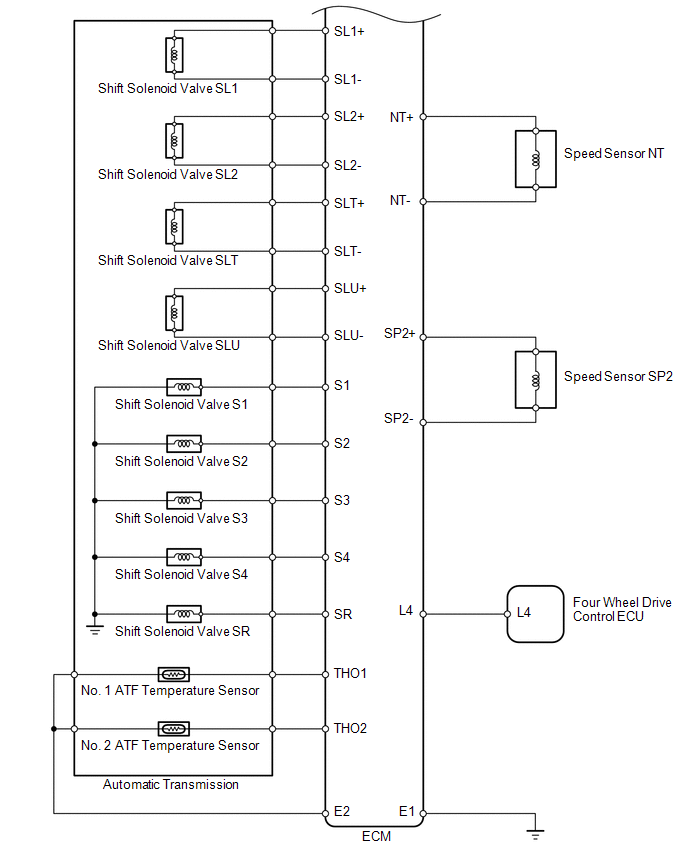

Fig 2: Automatic Transmission System Wiring Diagram (2 Of 2)
GTY671842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
