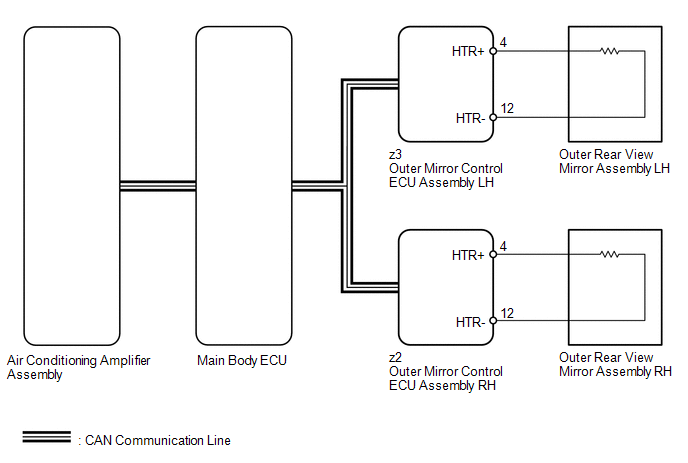

Mirror Heater does not Operate with Rear Defogger Switch [08/2015 - ]: Wiring Diagram

GTY274339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
