DTC B2271: Ignition Hold Monitor Malfunction [08/2015 - 08/2019]: Procedure

1. Disconnect the G39 power management control ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   G39-2 (AM21) - Body ground	Always	9.5 to 14 V
   G39-1 (AM22) - Body ground

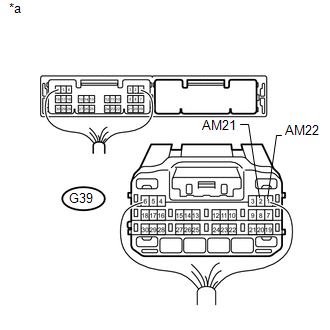

   TEXT IN ILLUSTRATION



   *a	Rear view of wire harness connector (to Power Management Control ECU)

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR IN CIRCUIT CONNECTED TO POWER SOURCE

Result:

OK

See step  2

1. Disconnect the G39 power management control ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G39-6 (GND) - Body ground	Always	Below 1 Ω
   G39-5 (GND2) - Body ground

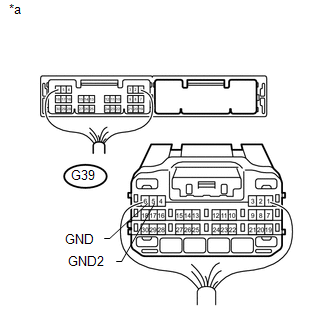

   TEXT IN ILLUSTRATION



   *a	Rear view of wire harness connector (to Power Management Control ECU)

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Connect the power management control ECU connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

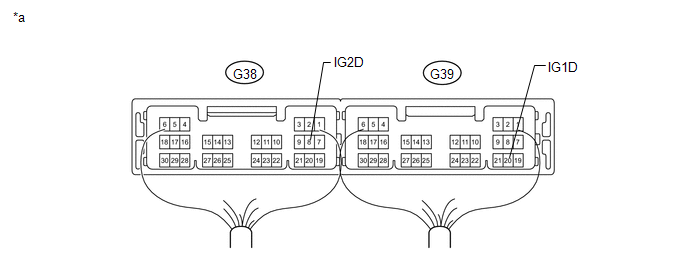

   TEXT IN ILLUSTRATION



   *a

   Component with harness connected (Power Management Control ECU)

   -

   -

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   G38-8 (IG2D) - Body ground	Engine switch off	1 V or less
   	Engine switch on (IG)*	9 V or higher
   G39-20 (IG1D) - Body ground	Engine switch off	1 V or less
   	Engine switch on (IG)*	9 V or higher

   1. *: To turn the engine switch on (IG), carry the key and press the engine switch twice with the shift lever in P and the brake pedal released.

Result:

OK

SYSTEM RETURNED TO NORMAL (DTC STORED DUE TO BAD CONNECTION, BUT SYSTEM RETURNED TO NORMAL BY RECONNECTING CONNECTOR)

Result:

NG

REPLACE POWER MANAGEMENT CONTROL ECU

(Refer to REMOVAL [08/2015 - 08/2019] )
