Installation [06/2018 - ]: Procedure

1. Pass the transmission control cable assembly into the vehicle and install the transmission control cable assembly to the vehicle body with the 2 nuts.

   Torque: 6.0 N*m (1 kgf*cm, 53 in.*lbf)

2. Connect the transmission control cable assembly to the vehicle body with the 2 nuts.

   Torque: 6.0 N*m (1 kgf*cm, 53 in.*lbf)

3. Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.

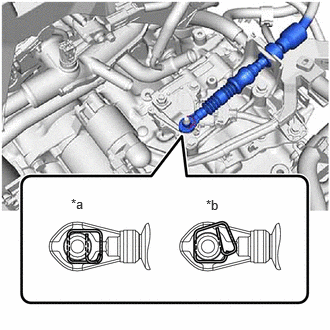

4. Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Correct
   *b	Incorrect

   NOTE:

   Before installing the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.

1. Install the No. 1 console box duct.

Refer to INSTALLATION [06/2018 - 01/2020] , or refer to INSTALLATION [01/2020 - 09/2022] , or refer to INSTALLATION [09/2022 - ]

1. Install the front lower No. 1 floor heat insulator to the vehicle body with the 2 nuts.

   Torque: 4.9 N*m (0 kgf*cm, 43 in.*lbf)

Refer to INSTALLATION [06/2018 - ]

Refer to PROCEDURE - Step 41

Refer to INSTALLATION [06/2018 - ]

Refer to INSTALLATION [06/2018 - ]

Refer to PROCEDURE - Step 2 [06/2018 - 09/2022] , or refer to PROCEDURE - Step 2 [09/2022 - ]

Refer to ADJUSTMENT [06/2018 - 01/2020] , or refer to ADJUSTMENT [01/2020 - ]
