Components [06/2018 - ]

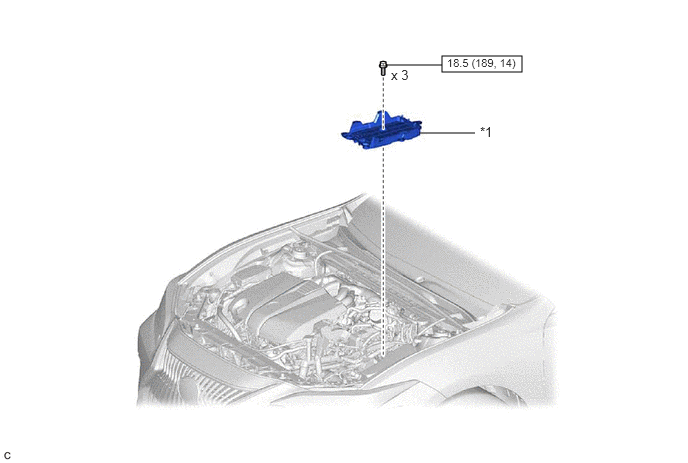

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications [06/2018 - ](1 Of 3)
| *1 | BATTERY CLAMP SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

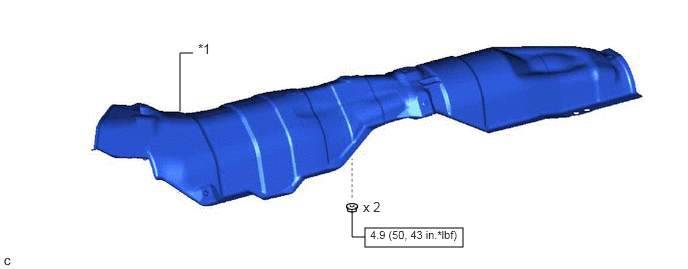

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications [06/2018 - ](2 Of 3)
| *1 | FRONT LOWER NO. 1 FLOOR HEAT INSULATOR | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

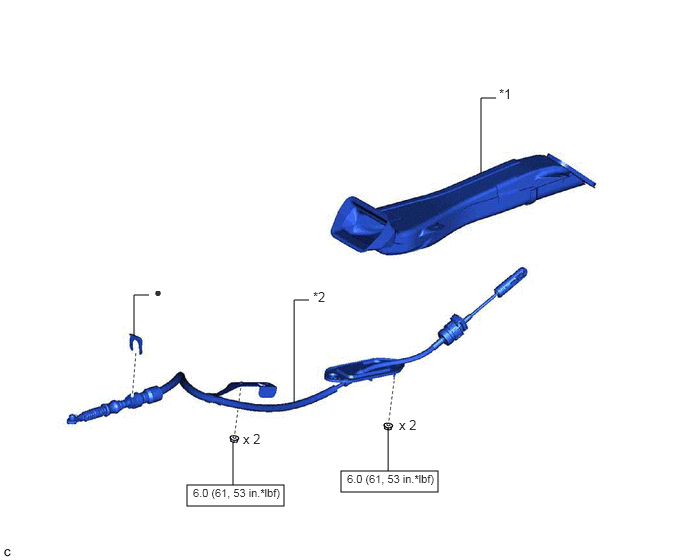

Fig 3: Transmission Control Cable Replacement Components With Torque Specifications [06/2018 - ](3 Of 3)
| *1 | NO. 1 CONSOLE BOX DUCT | *2 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
