Adjustment [01/2020 - ]: Procedure

SECURE VEHICLE

Fully apply the parking brake and chock a wheel.

WARNING:

Make sure to apply the parking brake and chock a wheel before performing this procedure.
If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [06/2018 - 08/2020] , or refer to REMOVAL [08/2020 - 09/2022] , or refer to REMOVAL [09/2022 - ]

ADJUST SHIFT LEVER POSITION

NOTE:

Before adjusting the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.

HINT:

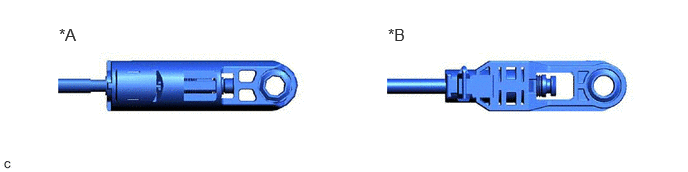

Whether the transmission control cable assembly is type A or type B can be determined by the shape of the end.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Type A

Type B

for Type A:

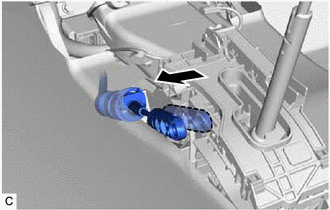

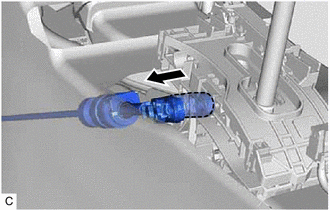

Disconnect the transmission control cable assembly from the transmission floor shift assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

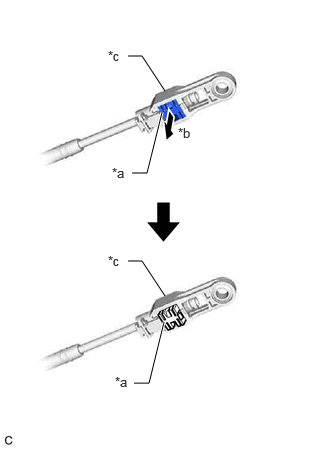

Slide the slider of the transmission control cable assembly in the direction indicated by the arrow in the illustration and pull the lock piece outward.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Slider
*b	Lock Piece
*c	Slide
*d	Pull

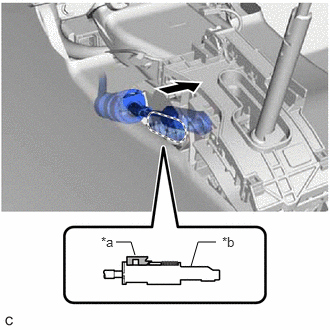

Connect the transmission control cable assembly to the transmission floor shift assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Lock Piece
*b	Adjuster Case

NOTE:

Check that the lock piece is pulled out.
Push the end of the transmission control cable assembly all the way to the base of the transmission floor shift assembly pin.
Connect the transmission control cable assembly so that the lock piece faces the driver side.

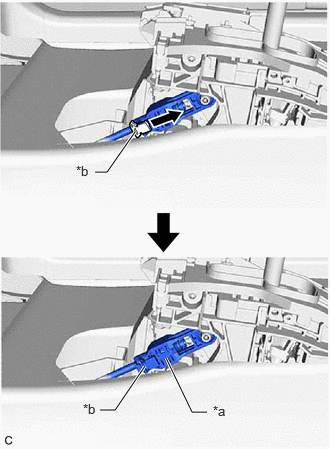

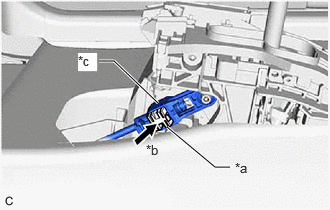

Push the lock piece into the adjuster case.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Lock Piece
*b	Push in
*c	Adjuster Case

NOTE:

Check that the park/neutral position switch assembly and shift lever are in N.
Securely push in the lock piece until the slider lock is engaged.

When pushing in the lock piece of the adjuster case to lock it, remove your hand from the lever shaft.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Transmission Control Cable Assembly
*a	Lever Shaft

When pushing in the lock piece of the adjuster case to lock it, do not move the lever shaft or transmission control cable assembly forward or backward.

After adjusting the shift lever position, check the position and operation of the shift lever. If there is a problem, adjust the shift lever position again.

for Type B:

Disconnect the transmission control cable assembly from the transmission floor shift assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

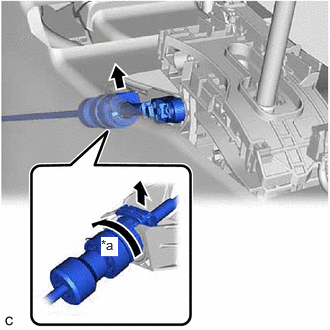

Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Counterclockwise

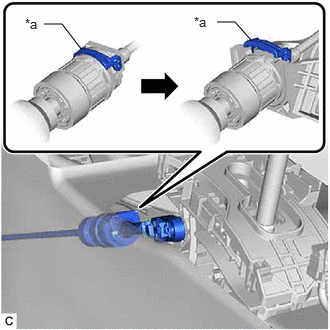

Slide the adjuster case cover in the direction shown by the arrow.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Adjuster Case Cover
*b	Slide

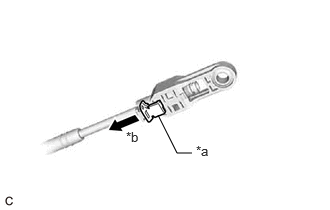

Using a precision screwdriver, pull out the lock piece of the adjuster case.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Lock Piece
*b	Pull Out
*c	Adjuster Case

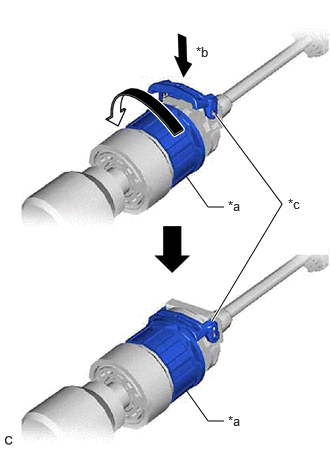

Turn the lock nut of the transmission control cable assembly counterclockwise. While holding the lock nut, push in the stopper.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Lock Nut
*b	Push in
*c	Stopper

Connect the transmission control cable assembly to the transmission floor shift assembly.

NOTE:

After installation, check that the outer part of the stopper is as shown in the illustration.

Stopper

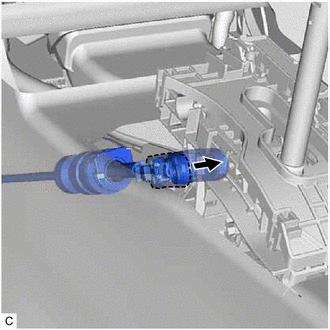

Connect the transmission control cable assembly to the transmission floor shift assembly.

NOTE:

Before connecting the transmission control cable assembly, check that the shift lever is in N.
Securely connect the end of the transmission control cable assembly to the transmission floor shift assembly.

Push in the lock piece of the adjuster case to lock it.

*a	Lock Piece
*b	Push in
*c	Adjuster Case

NOTE:

When pushing in the lock piece of the adjuster case to lock it, remove your hand from the lever shaft.

*1	Transmission Control Cable Assembly
*a	Lever Shaft

When pushing in the lock piece of the adjuster case to lock it, do not move the lever shaft or transmission control cable assembly forward or backward.

Move the adjuster case cover in the direction shown by the arrow.

NOTE:

If the adjuster case cover is not moved far enough so that the adjuster case cover engages the lock piece, the transmission control cable assembly will not be able to lock, and reliable shift operation will not be possible.

*a	Lock Piece
*b	Adjuster Case Cover

INSTALL CONSOLE BOX ASSEMBLY
Refer to INSTALLATION [06/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - 09/2022] , or refer to INSTALLATION [09/2022 - ]
