Removal [08/2021 - 09/2022]: Procedure

  1. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [08/2021 - 09/2022]

  2. REMOVE STEERING PAD SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

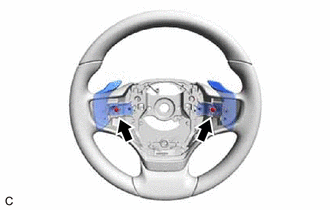

    1. Remove the 2 screws.
      GTY809669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

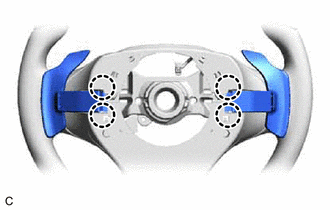

    2. Disengage the 4 claws.
      GTY809665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

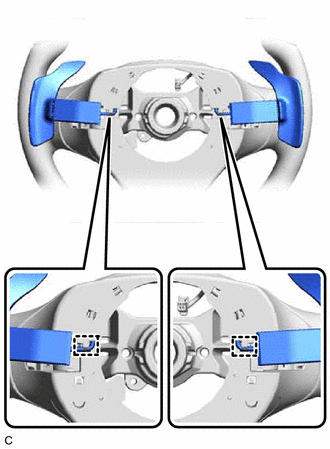

    3. Disengage the 2 clamps to disconnect the 2 shift paddle switches (transmission shift switch assemblies) from the steering wheel assembly.
      GTY809666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

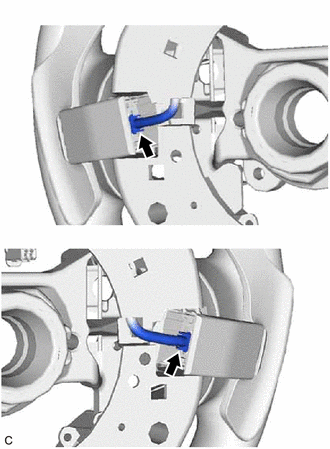

    4. Disconnect the 2 shift paddle switch (transmission shift switch assembly) connectors to remove the 2 shift paddle switches (transmission shift switch assemblies) from the No. 1 switch wire.
      GTY809663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 SWITCH WIRE

    HINT:

    Perform this procedure only when replacement of the No. 1 switch wire is necessary.

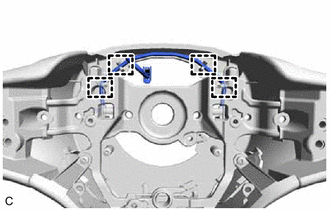

    1. Disengage the 4 guides and remove the No. 1 switch wire from the steering wheel assembly.
      GTY834838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
