Installation [06/2018 - ]: Procedure

HINT:

Perform this procedure only when replacement of the No. 1 switch wire is necessary.

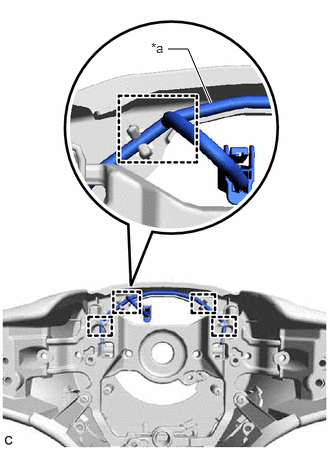

1. Engage the 4 guides to install the No. 1 switch wire to the steering wheel assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	No. 1 Switch Wire

   NOTE:

   Make sure that the junction of the No. 1 switch wire is the right of the guide as shown in the illustration.

1. Connect the 2 shift paddle switch (transmission shift switch assembly) connectors to install the 2 shift paddle switches (transmission shift switch assemblies) to the No. 1 switch wire.
2. Engage the 2 clamps.
3. Engage the 4 claws to install the 2 shift paddle switches (transmission shift switch assemblies) to the steering wheel assembly.
4. Install 2 new screws.

   Torque: 1.7 N*m (7 kgf*cm, 15 in.*lbf)

Refer to INSTALLATION [06/2018 - ]

Refer to INSTALLATION [06/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - ]
