Disassembly [06/2018 - ]: Procedure

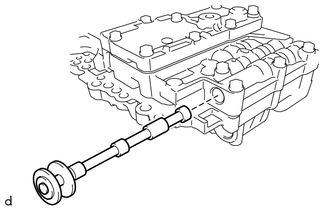

  1. REMOVE MANUAL VALVE
    1. Remove the manual valve from the transmission valve body assembly.
      GTY694194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

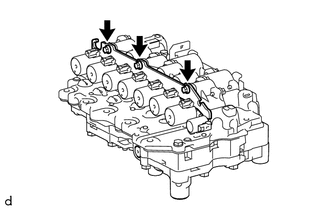

  2. REMOVE SOLENOID LOCK PLATE
    1. Remove the 3 bolts and solenoid lock plate from the transmission valve body assembly.
      GTY694195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

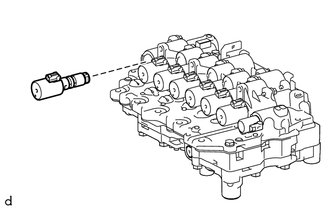

  3. REMOVE SOLENOID (SLU) VALVE
    1. Remove the solenoid (SLU) valve from the transmission valve body assembly.
      GTY694196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

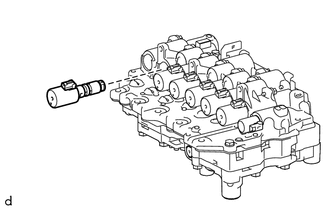

  4. REMOVE SOLENOID (SL5) VALVE
    1. Remove the solenoid (SL5) valve from the transmission valve body assembly.
      GTY694197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SOLENOID (SL6) VALVE
    1. Remove the solenoid (SL6) valve from the transmission valve body assembly.

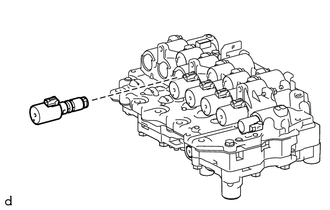

      GTY732604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

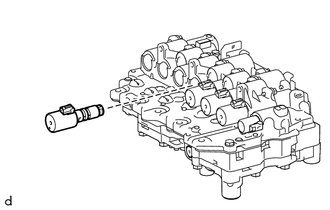

  6. REMOVE SOLENOID (SL4) VALVE
    1. Remove the solenoid (SL4) valve from the transmission valve body assembly.
      GTY694243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

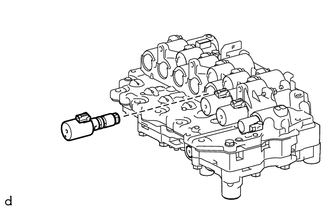

  7. REMOVE SOLENOID (SL3) VALVE
    1. Remove the solenoid (SL3) valve from the transmission valve body assembly.
      GTY694244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

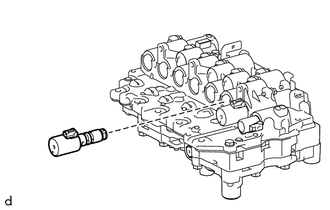

  8. REMOVE SOLENOID (SL1) VALVE
    1. Remove the solenoid (SL1) valve from the transmission valve body assembly.
      GTY694245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SOLENOID (SL2) VALVE
    1. Remove the solenoid (SL2) valve from the transmission valve body assembly.

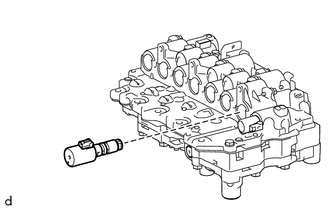

      GTY694246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE SOLENOID (SLT) VALVE
    1. Remove the solenoid (SLT) valve from the transmission valve body assembly.

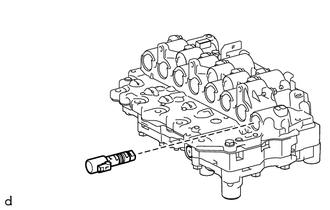

      GTY732603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

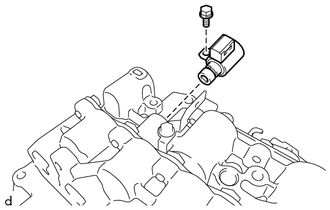

  11. REMOVE SOLENOID (SL) VALVE
    1. Remove the bolt and solenoid (SL) valve from the transmission valve body assembly.
      GTY694239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
