Components [06/2018 - ]

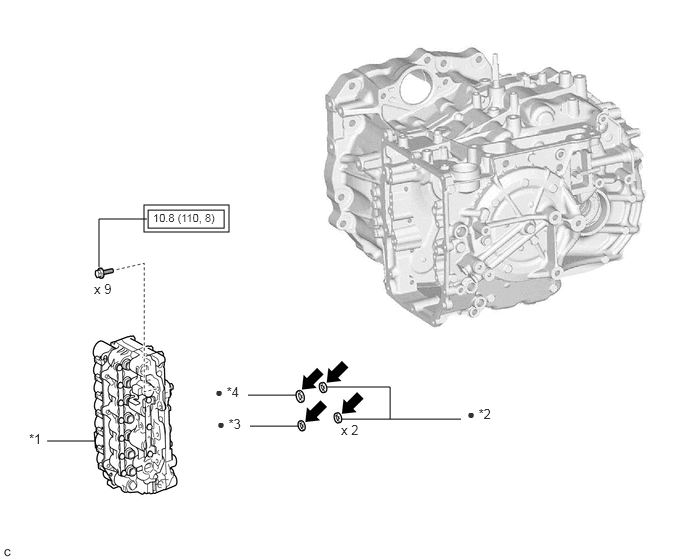

Fig 1: Valve Body Replacement Components With Torque Specifications (1 Of 2)

GTY788924

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TRANSMISSION VALVE BODY ASSEMBLY	*2	TRANSAXLE CASE GASKET
*3	NO. 1 FRONT OIL PUMP COVER GASKET	*4	NO. 2 FRONT OIL PUMP COVER GASKET
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Toyota Genuine ATF WS	-	-

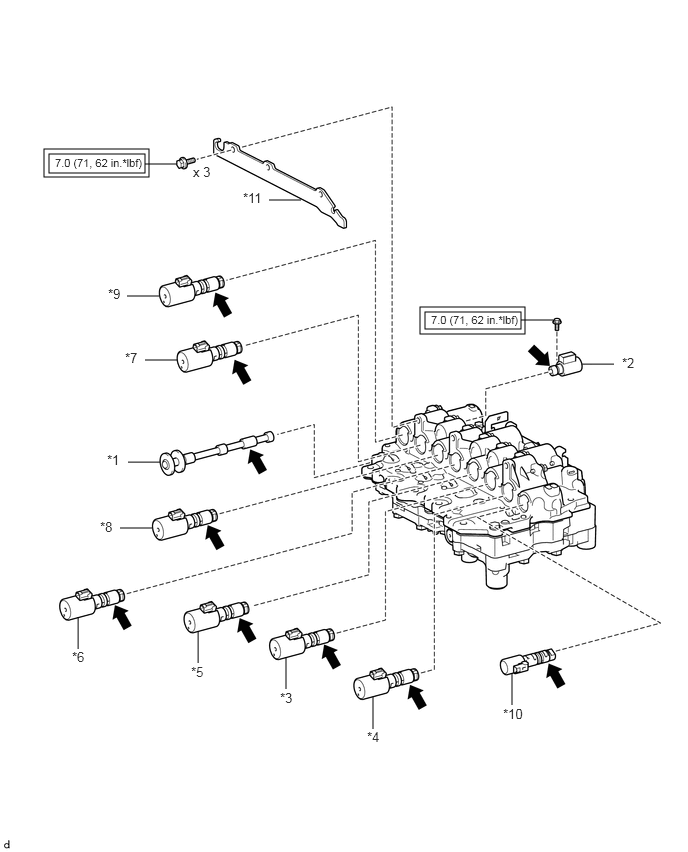

Fig 2: Valve Body Replacement Components With Torque Specifications (2 Of 2)

GTY823785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	MANUAL VALVE	*2	SOLENOID (SL) VALVE
*3	SOLENOID (SL1) VALVE	*4	SOLENOID (SL2) VALVE
*5	SOLENOID (SL3) VALVE	*6	SOLENOID (SL4) VALVE
*7	SOLENOID (SL5) VALVE	*8	SOLENOID (SL6) VALVE
*9	SOLENOID (SLU) VALVE	*10	SOLENOID (SLT) VALVE
*11	SOLENOID LOCK PLATE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		Toyota Genuine ATF WS
