Components [08/2020 - 08/2021]

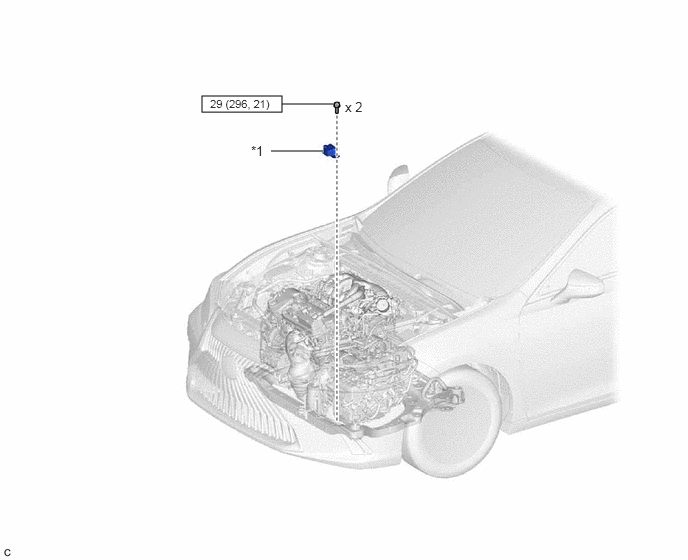

Fig 1: Transmission Wire Replacement Components With Torque Specifications [08/2020 - 08/2021] (1 Of 5)
| *A | Type A | *B | Type B |
| *1 | FRONT FENDER APRON SEAL LH | *2 | FRONT WHEEL OPENING EXTENSION PAD LH |
| *3 | FRONT WHEEL OPENING EXTENSION PAD RH | *4 | NO. 1 ENGINE UNDER COVER |
| *5 | NO. 3 ENGINE UNDER COVER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

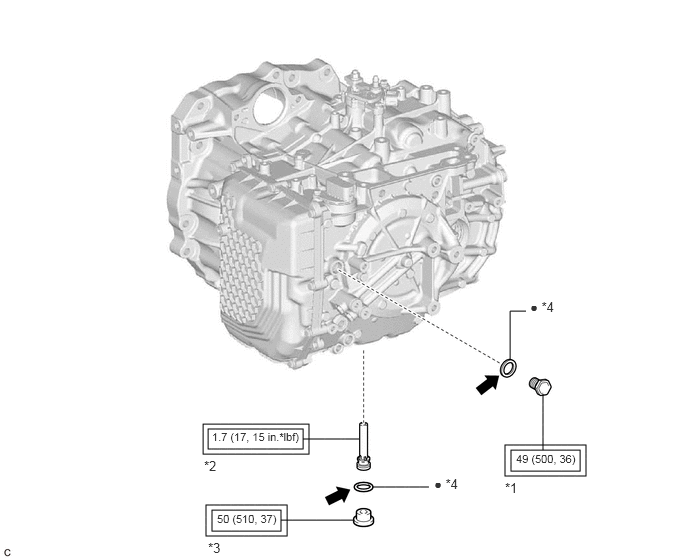

Fig 2: Transmission Wire Replacement Components With Torque Specifications [08/2020 - 08/2021] (2 Of 5)
| *1 | REFILL PLUG | *2 | NO. 1 TRANSMISSION OIL FILLER TUBE |
| *3 | OVERFLOW PLUG | *4 | GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
Fig 3: Transmission Wire Replacement Components With Torque Specifications [08/2020 - 08/2021] (3 Of 5)
| *1 | FRONT SUSPENSION MEMBER DYNAMIC DAMPER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 4: Transmission Wire Replacement Components With Torque Specifications [08/2020 - 08/2021] (4 Of 5)
| *A | for AISIN AW Made | *B | for TMMWV Made |
| *1 | TRANSMISSION CASE SIDE COVER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | * | Precoated part |

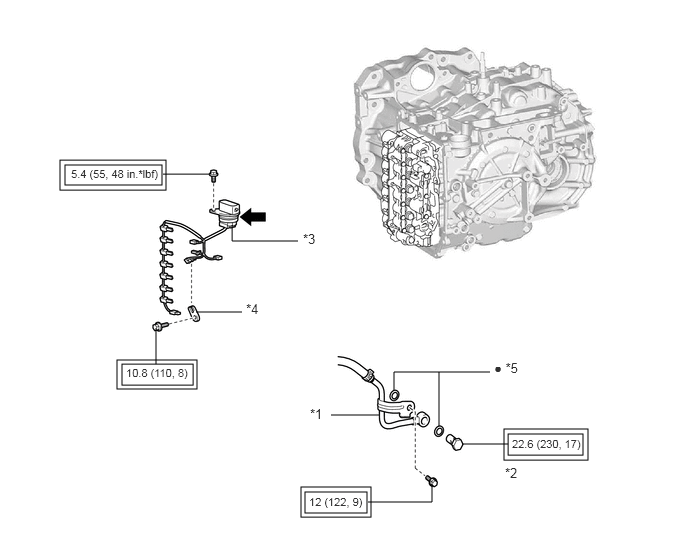

Fig 5: Transmission Wire Replacement Components With Torque Specifications [08/2020 - 08/2021] (5 Of 5)
| *1 | OIL COOLER UNION SUB-ASSEMBLY | *2 | OIL COOLER UNION BOLT |
| *3 | TRANSMISSION WIRE | *4 | TEMPERATURE SENSOR CLAMP |
| *5 | GASKET | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
