Components [06/2018 - 09/2022]

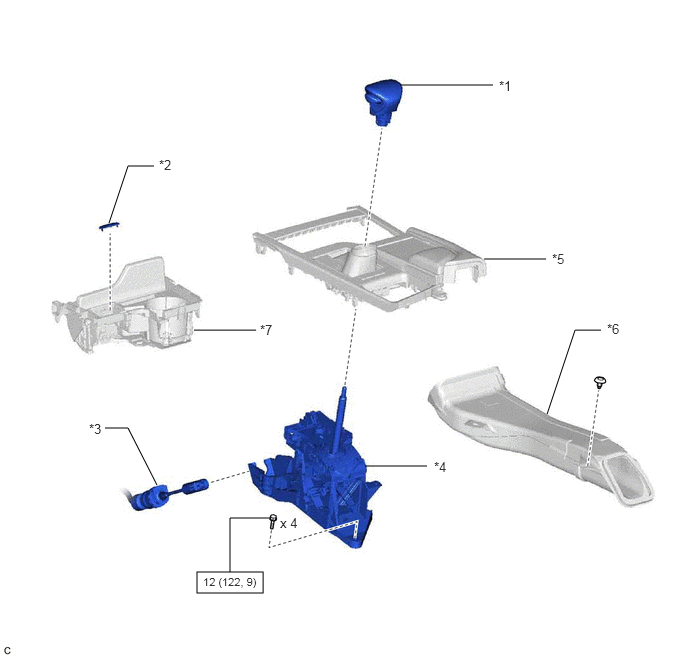

Fig 1: Shift Lever Replacement Components With Torque Specifications [06/2018 - 09/2022] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	SHIFT LEVER KNOB SUB-ASSEMBLY	*2	SHIFT LOCK RELEASE BUTTON COVER
*3	TRANSMISSION CONTROL CABLE ASSEMBLY	*4	TRANSMISSION FLOOR SHIFT ASSEMBLY
*5	REAR UPPER CONSOLE PANEL SUB-ASSEMBLY	*6	NO. 1 CONSOLE BOX DUCT
*7	UPPER CONSOLE PANEL SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

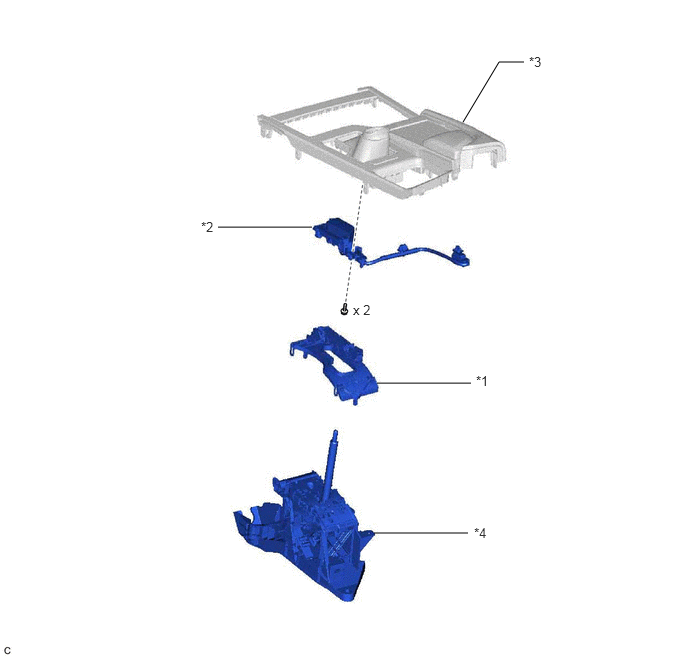

Fig 2: Shift Lever Replacement Components With Torque Specifications [06/2018 - 09/2022] (2 Of 2)

*1	LOWER POSITION INDICATOR HOUSING	*2	SHIFT POSITION INDICATOR
*3	REAR UPPER CONSOLE PANEL SUB-ASSEMBLY	*4	SHIFT LOCK CONTROL UNIT ASSEMBLY
