Components [07/2019 - 10/2019]

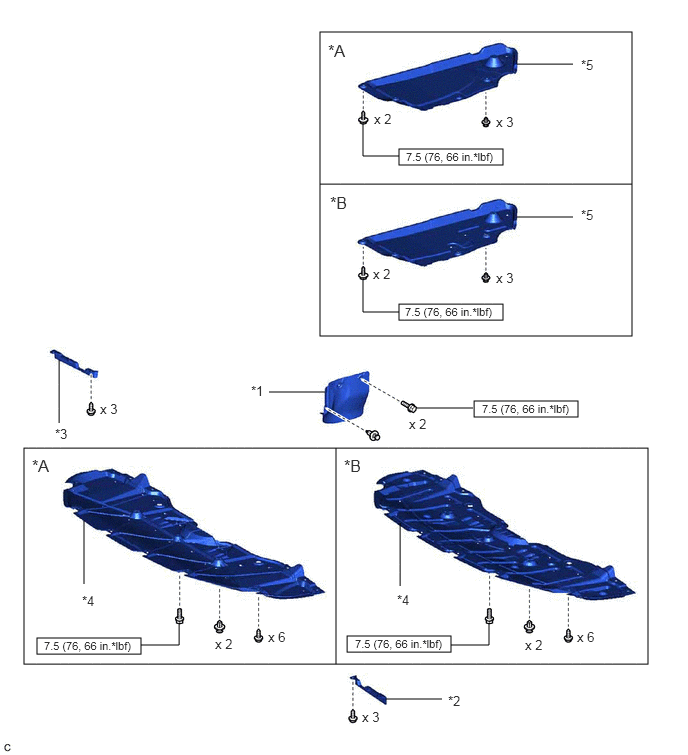

Fig 1: Oil Cooler Replacement Components With Torque Specifications [07/2019 - 10/2019] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	FRONT FENDER APRON SEAL LH	*2	FRONT WHEEL OPENING EXTENSION PAD LH
*3	FRONT WHEEL OPENING EXTENSION PAD RH	*4	NO. 1 ENGINE UNDER COVER
*5	NO. 3 ENGINE UNDER COVER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Oil Cooler Replacement Components With Torque Specifications [07/2019 - 10/2019] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BATTERY CLAMP SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

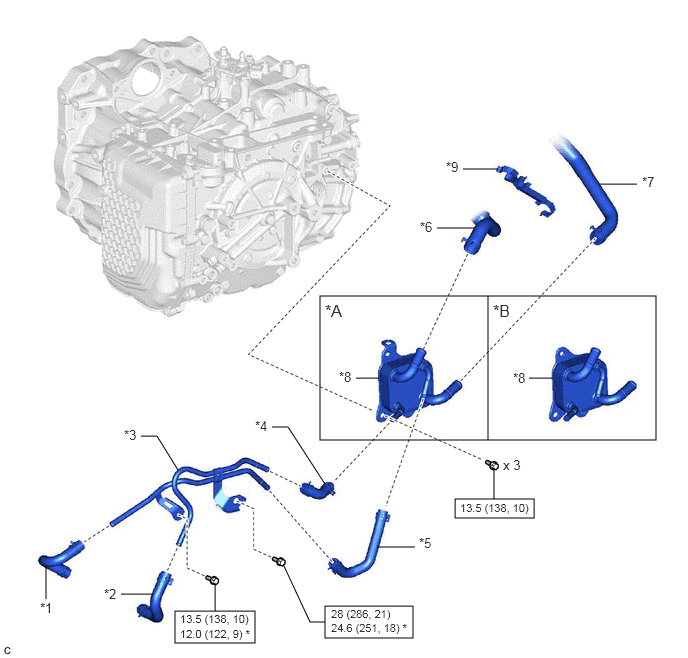

Fig 3: Oil Cooler Replacement Components With Torque Specifications [07/2019 - 10/2019] (3 Of 3)

*A	Type A	*B	Type B
*1	OUTLET NO. 1 OIL COOLER HOSE	*2	INLET NO. 1 OIL COOLER HOSE
*3	NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE	*4	INLET NO. 2 OIL COOLER HOSE
*5	OUTLET NO. 2 OIL COOLER HOSE	*6	NO. 1 WATER BY-PASS HOSE
*7	WATER BY-PASS HOSE ASSEMBLY	*8	TRANSMISSION OIL COOLER
*9	TRANSMISSION BREATHER CLAMP	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a union nut wrench
