Components [06/2018 - ]

Fig 1: Automatic Transmission Fluid Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	FRONT FENDER APRON SEAL LH	*2	FRONT WHEEL OPENING EXTENSION PAD LH
*3	FRONT WHEEL OPENING EXTENSION PAD RH	*4	NO. 1 ENGINE UNDER COVER
*5	NO. 3 ENGINE UNDER COVER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

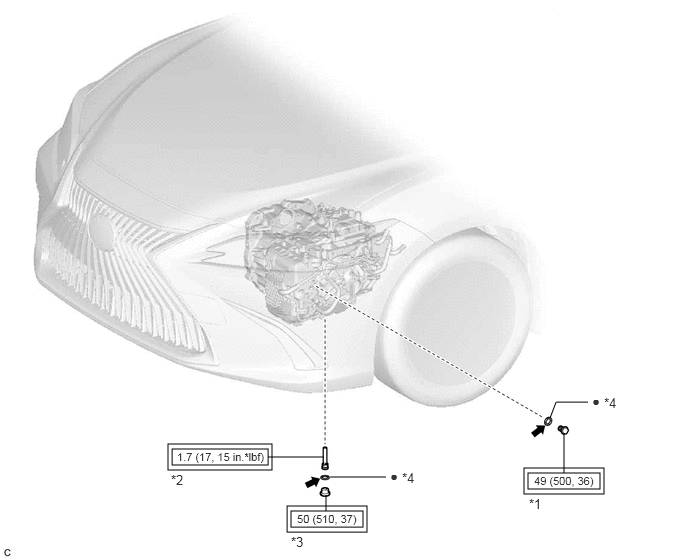

Fig 2: Automatic Transmission Fluid Replacement Components With Torque Specifications (2 Of 2)

*1	REFILL PLUG	*2	NO. 1 TRANSMISSION OIL FILLER TUBE
*3	OVERFLOW PLUG	*4	GASKET
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Toyota Genuine ATF WS	-	-
