Components [06/2018 - ]

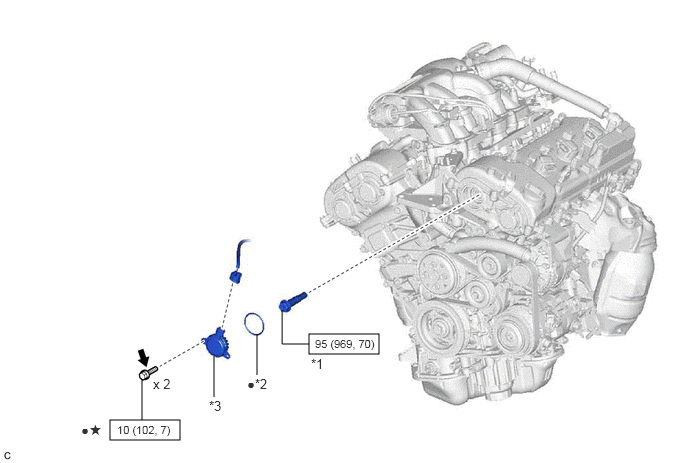

Fig 1: Camshaft Oil Control Valve (for Intake Side of Bank 2) Replacement Components With Torque Specifications
| *1 | CAMSHAFT TIMING GEAR BOLT | *2 | O-RING |
| *3 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part |
